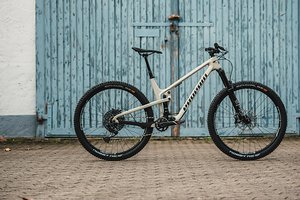

Propain Hugene 140 mm (2021) - Geometry
Compare these geometries with each other
Die Tabelle lässt sich verschieben.
| Modell | Propain Hugene 140 mm (2021) | Propain Hugene 140 mm (2021) | Propain Hugene 140 mm (2021) | Propain Hugene 140 mm (2021) |
|---|---|---|---|---|
| Frame Size/Setup | S | M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ | 29″ | 29″ | 29″ |
| Reach | 430 mm | 455 mm | 480 mm | 505 mm |
| Stack | 612 mm | 621 mm | 630 mm | 640 mm |
| STR | 1.42 | 1.36 | 1.31 | 1.27 |
| Reach+ | ||||
| Stack+ | ||||
| Frame RAD | 748 mm | 770 mm | 792 mm | 815 mm |
| Frame RAAD | 35.1° | 36.2° | 37.3° | 38.3° |
| Front-Center | ||||
| Head Angle | 65.5° | 65.5° | 65.5° | 65.5° |
| Seat Angle, effective | 76.5° | 76.5° | 76.5° | 76.5° |
| Seat Angle, real | 73.1° | 73.1° | 73.1° | 73.1° |
| Top Tube Length | 577 mm | 604 mm | 631 mm | 659 mm |
| Top Tube Length (horizontal) | ||||
| Head Tube Length | 100 mm | 110 mm | 120 mm | 120 mm |
| Seat Tube Length | 400 mm | 425 mm | 450 mm | 480 mm |
| Standover Height | ||||
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1,184 mm | 1,213 mm | 1,242 mm | 1,271 mm |
| FC2RC | 1.66 | 1.73 | 1.79 | 1.86 |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm |
| Bottom Bracket Height | ||||
| Fork installation height | 555 mm | 555 mm | 555 mm | 555 mm |
| Fork offset | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | ||||
| Travel (rear) | 140 mm | 140 mm | 140 mm | 140 mm |
| Travel (front) | 140 mm | 140 mm | 140 mm | 140 mm |
