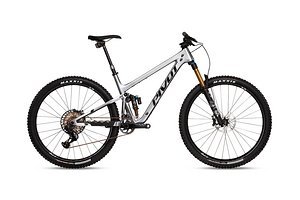

Pivot Trail 429 (2021) - Geometry

Compare these geometries with each other

The table can be moved.
Modell Pivot Trail 429 (2021) Pivot Trail 429 (2021) Pivot Trail 429 (2021) Pivot Trail 429 (2021) Pivot Trail 429 (2021)
Frame Size/Setup XS SM MD LG XL
Typ Mountainbike Mountainbike Mountainbike Mountainbike Mountainbike
Wheel Size 29″ 29″ 29″ 29″ 29″ 29″ 29″ 29″ 29″ 29″
Reach 410 mm 405 mm 430 mm 425 mm 460 mm 455 mm 475 mm 470 mm 495 mm 490 mm
Stack 584 mm 588 mm 593 mm 597 mm 604 mm 608 mm 609 mm 613 mm 621 mm 625 mm
STR 1,42 1,45 1,38 1,40 1,31 1,34 1,28 1,30 1,25 1,28
Reach+
Stack+
Front-Center
Head Angle 66.5° 66° 66.5° 66° 66.5° 66° 66.5° 66° 66.5° 66°
Seat Angle, effective 75.5° 75° 75.5° 75° 75.5° 75° 75.5° 75° 75.5° 75°
Seat Angle, real
Top Tube Length 572 mm 573 mm 595 mm 596 mm 628 mm 629 mm 644 mm 645 mm 667 mm 669 mm
Top Tube Length (horizontal)
Head Tube Length 85 mm 85 mm 95 mm 95 mm 107 mm 107 mm 112 mm 112 mm 125 mm 125 mm
Seat Tube Length 343 mm 343 mm 368 mm 368 mm 394 mm 394 mm 432 mm 432 mm 470 mm 470 mm
Standover Height
Chainstay Length 430 mm 432 mm 430 mm 432 mm 430 mm 432 mm 430 mm 432 mm 430 mm 432 mm
Wheelbase 1.128 mm 1.129 mm 1.152 mm 1.153 mm 1.187 mm 1.188 mm 1.204 mm 1.205 mm 1.229 mm 1.230 mm
Bottom Bracket Drop 27 mm 27 mm 27 mm 27 mm 27 mm 27 mm 27 mm 27 mm 27 mm 27 mm
Bottom Bracket Height 347 mm 340 mm 347 mm 340 mm 347 mm 340 mm 347 mm 340 mm 347 mm 340 mm
Fork installation height
Fork offset
Fork caster
Travel (rear) 120 mm 120 mm 120 mm 120 mm 120 mm 120 mm 120 mm 120 mm 120 mm 120 mm
Travel (front) 140 mm 140 mm 140 mm 140 mm 140 mm 140 mm 140 mm 140 mm 140 mm 140 mm
