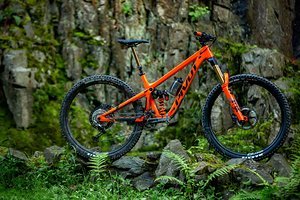

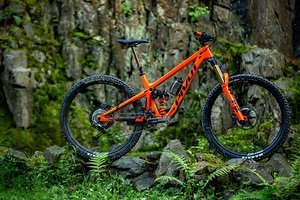

Pivot Firebird (2021) - Geometry

Compare these geometries with each other

The table can be moved.
Modell Pivot Firebird (2021) Pivot Firebird (2021) Pivot Firebird (2021) Pivot Firebird (2021)
Frame Size/Setup S M L XL
Typ Mountainbike Mountainbike Mountainbike Mountainbike
Wheel Size 29″ 29″ 29″ 29″ 29″ 29″ 29″ 29″
Reach 445 mm 450 mm 468 mm 473 mm 488 mm 493 mm 510 mm 515 mm
Stack 615.4 mm 612 mm 627 mm 624 mm 636 mm 633 mm 645 mm 642 mm
STR 1,38 1,36 1,34 1,32 1,30 1,28 1,26 1,25
Reach+
Stack+
Front-Center
Head Angle 64° 64.6° 64° 64.6° 64° 64.6° 64° 64.6°
Seat Angle, effective 76° 76.5° 76.5° 77° 77° 77.5° 77° 77.5°
Seat Angle, real
Top Tube Length 598 mm 597 mm 624 mm 623 mm 641 mm 640 mm 665 mm 664 mm
Top Tube Length (horizontal)
Head Tube Length 95 mm 95 mm 108 mm 108 mm 118 mm 118 mm 128 mm 128 mm
Seat Tube Length 375 mm 375 mm 410 mm 410 mm 440 mm 440 mm 470 mm 470 mm
Standover Height 662.1 mm 667.2 mm 672.4 mm 677.9 mm 693.5 mm 698.8 mm 704 mm 709.4 mm
Chainstay Length 431 mm 430 mm 434 mm 433 mm 438 mm 437 mm 445 mm 444 mm
Wheelbase 1.207 mm 1.206 mm 1.239 mm 1.237 mm 1.267 mm 1.266 mm 1.300 mm 1.299 mm
Bottom Bracket Drop 20 mm 14.2 mm 20 mm 14.2 mm 20 mm 14.2 mm 20 mm 14.2 mm
Bottom Bracket Height 350 mm 355.8 mm 350 mm 355.8 mm 350 mm 355.8 mm 350 mm 355.8 mm
Fork installation height
Fork offset 44 mm 44 mm 44 mm 44 mm 44 mm 44 mm 44 mm 44 mm
Fork caster
Travel (rear) 165 mm 165 mm 165 mm 165 mm 165 mm 165 mm 165 mm 165 mm
Travel (front) 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm
