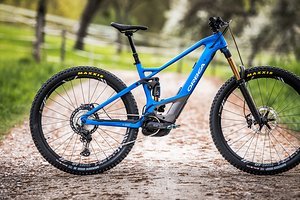

Orbea Wild FS Team (2021) - Geometry
Compare these geometries with each other
The table can be moved.
| Modell | Orbea Wild FS Team (2021) | Orbea Wild FS Team (2021) | Orbea Wild FS Team (2021) |
|---|---|---|---|
| Frame Size/Setup | S/M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ | 29″ | 29″ |
| Reach | 430 mm | 455 mm | 485 mm |
| Stack | 621 mm | 630 mm | 644 mm |
| STR | 1,44 | 1,38 | 1,33 |
| Reach+ | |||
| Stack+ | |||
| Front-Center | |||
| Head Angle | 65.5° | 65.5° | 65.5° |
| Seat Angle, effective | |||
| Seat Angle, real | 76° | 76° | 76° |
| Top Tube Length | 585 mm | 612 mm | 645 mm |
| Top Tube Length (horizontal) | |||
| Head Tube Length | 100 mm | 110 mm | 125 mm |
| Seat Tube Length | 406 mm | 444 mm | 485 mm |
| Standover Height | |||
| Chainstay Length | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1.203 mm | 1.232 mm | 1.268 mm |
| Bottom Bracket Drop | |||
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm |
| Fork installation height | 570 mm | 570 mm | 570 mm |
| Fork offset | |||
| Fork caster | |||
| Travel (rear) | 160 mm | 160 mm | 160 mm |
| Travel (front) | 160 mm | 160 mm | 160 mm |
