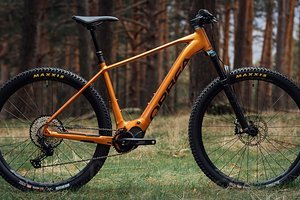

Orbea Urrun (2023) - Geometry
Compare these geometries with each other
The table can be moved.
| Modell | Orbea Urrun (2023) | Orbea Urrun (2023) | Orbea Urrun (2023) | Orbea Urrun (2023) |
|---|---|---|---|---|
| Frame Size/Setup | S | M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ | 29″ | 29″ | 29″ |
| Reach | 395 mm | 405 mm | 440 mm | 460 mm |
| Stack | 631 mm | 628 mm | 647 mm | 666 mm |
| STR | 1,60 | 1,55 | 1,47 | 1,45 |
| Reach+ | ||||
| Stack+ | ||||
| Front-Center | ||||
| Head Angle | 65.5° | 66° | 66° | 66° |
| Seat Angle, effective | 74.8° | 74.6° | 74.6° | 74.5° |
| Seat Angle, real | ||||
| Top Tube Length | ||||
| Top Tube Length (horizontal) | 565 mm | 579 mm | 608 mm | 645 mm |
| Head Tube Length | 110 mm | 115 mm | 132 mm | 153 mm |
| Seat Tube Length | 400 mm | 453 mm | 483 mm | 533 mm |
| Standover Height | 826 mm | 854 mm | 877 mm | 910 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1.143 mm | 1.150 mm | 1.173 mm | 1.220 mm |
| Bottom Bracket Drop | ||||
| Bottom Bracket Height | 322 mm | 320 mm | 320 mm | 320 mm |
| Fork installation height | ||||
| Fork offset | ||||
| Fork caster | ||||
| Travel (rear) | 0 mm | 0 mm | 0 mm | 0 mm |
| Travel (front) | 100 mm | 100 mm | 100 mm | 100 mm |
