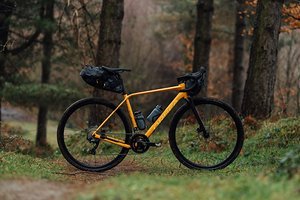

Orbea Terra H (2022) - Geometry
Compare these geometries with each other
Die Tabelle lässt sich verschieben.
| Modell | Orbea Terra H (2022) | Orbea Terra H (2022) | Orbea Terra H (2022) | Orbea Terra H (2022) | Orbea Terra H (2022) | Orbea Terra H (2022) |
|---|---|---|---|---|---|---|
| Frame Size/Setup | XS | S | M | L | XL | XXL |
| Typ | Gravel-Bike/CycloCross-Bike | Gravel-Bike/CycloCross-Bike | Gravel-Bike/CycloCross-Bike | Gravel-Bike/CycloCross-Bike | Gravel-Bike/CycloCross-Bike | Gravel-Bike/CycloCross-Bike |
| Wheel Size | 28″ / 700C | 28″ / 700C | 28″ / 700C | 28″ / 700C | 28″ / 700C | 28″ / 700C |
| Reach | 375 mm | 382 mm | 389 mm | 395 mm | 402 mm | 409 mm |
| Stack | 526 mm | 548 mm | 570 mm | 592 mm | 614 mm | 636 mm |
| STR | 1.40 | 1.43 | 1.47 | 1.50 | 1.53 | 1.56 |
| Reach+ | ||||||
| Stack+ | ||||||
| Frame RAD | 646 mm | 668 mm | 690 mm | 712 mm | 734 mm | 756 mm |
| Frame RAAD | 35.5° | 34.9° | 34.3° | 33.7° | 33.2° | 32.7° |
| Front-Center | ||||||
| Head Angle | 70° | 70.5° | 71° | 71° | 71.5° | 72° |
| Seat Angle, effective | ||||||
| Seat Angle, real | 74° | 74° | 73.5° | 73.5° | 73° | 73° |
| Top Tube Length | ||||||
| Top Tube Length (horizontal) | 526 mm | 539 mm | 558 mm | 570 mm | 590 mm | 603 mm |
| Head Tube Length | 110 mm | 131 mm | 152 mm | 178 mm | 199 mm | 220 mm |
| Seat Tube Length | 425 mm | 458 mm | 491 mm | 524 mm | 557 mm | 590 mm |
| Standover Height | 718 mm | 746 mm | 773 mm | 803 mm | 830 mm | 853 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1,020 mm | 1,030 mm | 1,039 mm | 1,054 mm | 1,063 mm | 1,072 mm |
| FC2RC | 1.37 | 1.40 | 1.42 | 1.45 | 1.47 | 1.49 |
| Bottom Bracket Drop | 78 mm | 78 mm | 78 mm | 76 mm | 76 mm | 76 mm |
| Bottom Bracket Height | ||||||
| Fork installation height | 390 mm | 390 mm | 390 mm | 390 mm | 390 mm | 390 mm |
| Fork offset | ||||||
| Trail | ||||||
| Travel (rear) | ||||||
| Travel (front) |
Notes
Posts about this Bike
Report error
Please describe the error as accurately as possible. We will look at it and try to fix it as soon as possible!
Aluminium Version des Orbea Terra Carbon Gravel-Bikes mit leicht anderer Geometrie.
