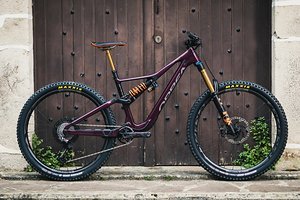

Orbea Rallon Mullet (2022) - Geometry

Compare these geometries with each other

The table can be moved.
Modell Orbea Rallon Mullet (2022) Orbea Rallon Mullet (2022) Orbea Rallon Mullet (2022) Orbea Rallon Mullet (2022)
Frame Size/Setup S M L XL
Typ Mountainbike Mountainbike Mountainbike Mountainbike
Wheel Size Mullet 29/27,5 Mullet 29/27,5 Mullet 29/27,5 Mullet 29/27,5
Reach 430 mm 455 mm 480 mm 505 mm
Stack 623 mm 632 mm 641 mm 650 mm
STR 1,45 1,39 1,34 1,29
Front-Center
Head Angle 64° 64° 64° 64°
Seat Angle, effective 77° 77° 77° 77°
Seat Angle, real
Top Tube Length 573 mm 600 mm 627 mm 655 mm
Top Tube Length (horizontal)
Head Tube Length 90 mm 100 mm 110 mm 120 mm
Seat Tube Length 415 mm 415 mm 435 mm 460 mm
Standover Height 744 mm 744 mm 761 mm 781 mm
Chainstay Length 438 mm 438 mm 438 mm 438 mm
Wheelbase 1.201 mm 1.230 mm 1.260 mm 1.289 mm
Bottom Bracket Drop 35 mm 35 mm 35 mm 35 mm
Bottom Bracket Height 343 mm 343 mm 343 mm 343 mm
Fork installation height 583.7 mm 583.7 mm 583.7 mm 583.7 mm
Fork offset
Fork caster
Travel (rear) 160 mm 160 mm 160 mm 160 mm
Travel (front) 170 mm 170 mm 170 mm 170 mm
