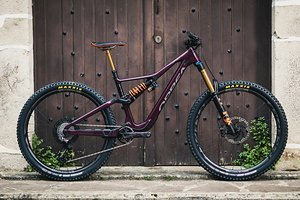

Orbea Rallon 29" (2022) - Geometry
Compare these geometries with each other
Die Tabelle lässt sich verschieben.
| Modell | Orbea Rallon 29" (2022) | Orbea Rallon 29" (2022) | Orbea Rallon 29" (2022) | Orbea Rallon 29" (2022) |
|---|---|---|---|---|
| Frame Size/Setup | S | M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ 29″ | 29″ 29″ | 29″ 29″ | 29″ 29″ |
| Reach | 435 mm 435 mm | 460 mm 460 mm | 485 mm 485 mm | 510 mm 510 mm |
| Stack | 619 mm 619 mm | 628 mm 628 mm | 637 mm 637 mm | 646 mm 646 mm |
| STR | 1.42 1.42 | 1.37 1.37 | 1.31 1.31 | 1.27 1.27 |
| Reach+ | ||||
| Stack+ | ||||
| Frame RAD | 757 mm 757 mm | 778 mm 778 mm | 801 mm 801 mm | 823 mm 823 mm |
| Frame RAAD | 35.1° 35.1° | 36.2° 36.2° | 37.3° 37.3° | 38.3° 38.3° |
| Front-Center | ||||
| Head Angle | 64.5° 64° | 64.5° 64° | 64.5° 64° | 64.5° 64° |
| Seat Angle, effective | 77.5° 77° | 77.5° 77° | 77.5° 77° | 77.5° 77° |
| Seat Angle, real | ||||
| Top Tube Length | 572 mm 572 mm | 599 mm 599 mm | 626 mm 626 mm | 653 mm 653 mm |
| Top Tube Length (horizontal) | ||||
| Head Tube Length | 90 mm 90 mm | 100 mm 100 mm | 110 mm 110 mm | 120 mm 120 mm |
| Seat Tube Length | 415 mm 415 mm | 415 mm 415 mm | 435 mm 435 mm | 460 mm 460 mm |
| Standover Height | 737 mm 737 mm | 737 mm 737 mm | 754 mm 754 mm | 774 mm 774 mm |
| Chainstay Length | 440 mm 440 mm | 440 mm 440 mm | 440 mm 440 mm | 440 mm 440 mm |
| Wheelbase | 1,202 mm 1,202 mm | 1,231 mm 1,231 mm | 1,260 mm 1,260 mm | 1,290 mm 1,290 mm |
| FC2RC | 1.73 1.73 | 1.80 1.80 | 1.86 1.86 | 1.93 1.93 |
| Bottom Bracket Drop | 28 mm 35 mm | 28 mm 35 mm | 28 mm 35 mm | 28 mm 35 mm |
| Bottom Bracket Height | 343 mm 336 mm | 343 mm 336 mm | 343 mm 336 mm | 343 mm 336 mm |
| Fork installation height | 583.7 mm 583.7 mm | 583.7 mm 583.7 mm | 583.7 mm 583.7 mm | 583.7 mm 583.7 mm |
| Fork offset | ||||
| Trail | ||||
| Travel (rear) | 160 mm 160 mm | 160 mm 160 mm | 160 mm 160 mm | 160 mm 160 mm |
| Travel (front) | 170 mm 170 mm | 170 mm 170 mm | 170 mm 170 mm | 170 mm 170 mm |
