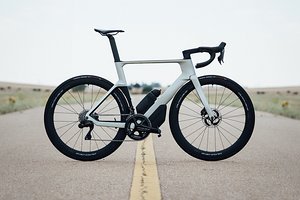

Orbea Orca Aero (2022) - Geometry

Compare these geometries with each other

The table can be moved.
Modell Orbea Orca Aero (2022) Orbea Orca Aero (2022) Orbea Orca Aero (2022) Orbea Orca Aero (2022) Orbea Orca Aero (2022) Orbea Orca Aero (2022) Orbea Orca Aero (2022)
Frame Size/Setup 47 49 51 53 55 57 60
Typ Rennrad Rennrad Rennrad Rennrad Rennrad Rennrad Rennrad
Wheel Size 28″ / 700C 28″ / 700C 28″ / 700C 28″ / 700C 28″ / 700C 28″ / 700C 28″ / 700C
Reach 370 mm 376 mm 380 mm 385 mm 391 mm 398 mm 404 mm
Stack 496 mm 505 mm 523 mm 542 mm 562 mm 580 mm 606 mm
STR 1,34 1,34 1,38 1,41 1,44 1,46 1,50
Front-Center
Head Angle 71° 71.5° 72.2° 72.8° 73° 73.2° 73.2°
Seat Angle, effective
Seat Angle, real 74.5° 74° 73.7° 73.5° 73.5° 73.2° 73.2°
Top Tube Length
Top Tube Length (horizontal) 507.6 mm 520.8 mm 532.9 mm 545.5 mm 557.5 mm 573.1 mm 587 mm
Head Tube Length 93.1 mm 100.8 mm 117.2 mm 134.9 mm 155.2 mm 173.2 mm 200.4 mm
Seat Tube Length 459 mm 474 mm 499 mm 524 mm 544 mm 564 mm 589 mm
Standover Height 717 mm 728.5 mm 750.1 mm 775 mm 794 mm 881.6 mm 835.8 mm
Chainstay Length 408 mm 408 mm 408 mm 408 mm 408 mm 408 mm 408 mm
Wheelbase 966.2 mm 971 mm 974.8 mm 976.1 mm 986.4 mm 996.4 mm 1.011 mm
Bottom Bracket Drop 76 mm 76 mm 76 mm 74 mm 74 mm 74 mm 74 mm
Bottom Bracket Height
Fork installation height 370 mm 370 mm 370 mm 370 mm 370 mm 370 mm 370 mm
Fork offset
Fork caster
Travel (rear)
Travel (front)

Notes

Aero-Rennrad
