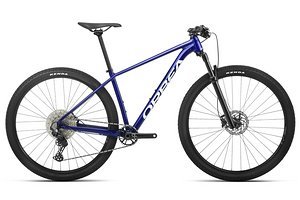

Orbea Onna (2022) - Geometry

Compare these geometries with each other

The table can be moved.
Modell Orbea Onna (2022) Orbea Onna (2022) Orbea Onna (2022) Orbea Onna (2022) Orbea Onna (2022) Orbea Onna (2022)
Frame Size/Setup XS M L XL S27 S29
Typ Mountainbike Mountainbike Mountainbike Mountainbike Mountainbike Mountainbike
Wheel Size 27,5″ / 650B 29″ 29″ 29″ 27,5″ / 650B 29″
Reach 365 mm 418 mm 440 mm 468 mm 385 mm 390 mm
Stack 582 mm 617 mm 627 mm 641 mm 591 mm 617 mm
STR 1,59 1,48 1,43 1,37 1,54 1,58
Reach+
Stack+
Front-Center
Head Angle 68.5° 68.5° 68.5° 68.5° 68.5° 68.5°
Seat Angle, effective 74.5° 74.5° 74.5° 74.5° 74.5° 74.5°
Seat Angle, real
Top Tube Length
Top Tube Length (horizontal) 526 mm 589 mm 614 mm 646 mm 549 mm 561 mm
Head Tube Length 95 mm 95 mm 105 mm 120 mm 105 mm 95 mm
Seat Tube Length 350 mm 430 mm 470 mm 540 mm 388 mm 388 mm
Standover Height 668 mm 739 mm 770 mm 826 mm 705 mm 705 mm
Chainstay Length 430 mm 440 mm 440 mm 440 mm 430 mm 440 mm
Wheelbase 1.049 mm 1.121 mm 1.146 mm 1.180 mm 1.073 mm 1.093 mm
Bottom Bracket Drop 45 mm 64 mm 64 mm 464 mm 45 mm 64 mm
Bottom Bracket Height 312 mm 309 mm 309 mm 309 mm 312 mm 312 mm
Fork installation height 498.9 mm 517.9 mm 517.9 mm 517.9 mm 498.9 mm 517.9 mm
Fork offset
Fork caster
Travel (rear)
Travel (front) 100 mm 100 mm 100 mm 100 mm 100 mm 100 mm
