Compare these geometries with each other

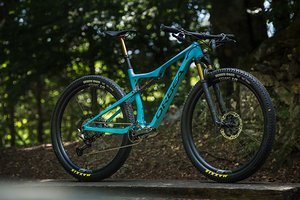

| Modell | Orbea Oiz OMX 100 (2021) | Orbea Oiz OMX 100 (2021) | Orbea Oiz OMX 100 (2021) | Orbea Oiz OMX 100 (2021) |
|---|---|---|---|---|
| Frame Size/Setup | S | M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ | 29″ | 29″ | 29″ |
| Reach | 407 mm | 435 mm | 456 mm | 476 mm |
| Stack | 586 mm | 591 mm | 600 mm | 614 mm |
| STR | 1,44 | 1,36 | 1,32 | 1,29 |
| Front-Center | ||||
| Head Angle | 69° | 69° | 69° | 69° |
| Seat Angle, effective | 75° | 75° | 75° | 75° |
| Seat Angle, real | ||||
| Top Tube Length | 564 mm | 593 mm | 617 mm | 641 mm |
| Top Tube Length (horizontal) | ||||
| Head Tube Length | 90 mm | 95 mm | 105 mm | 120 mm |
| Seat Tube Length | 405 mm | 432 mm | 470 mm | 520 mm |
| Standover Height | 717 mm | 732 mm | 742 mm | 749 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1.089 mm | 1.119 mm | 1.143 mm | 1.168 mm |
| Bottom Bracket Drop | 47 mm | 47 mm | 47 mm | 47 mm |
| Bottom Bracket Height | 327 mm | 327 mm | 327 mm | 327 mm |
| Fork installation height | 504 mm | 504 mm | 504 mm | 504 mm |
| Fork offset | 44 mm | 44 mm | 44 mm | 44 mm |
| Fork caster | ||||
| Travel (rear) | 100 mm | 100 mm | 100 mm | 100 mm |
| Travel (front) | 100 mm | 100 mm | 100 mm | 100 mm |
