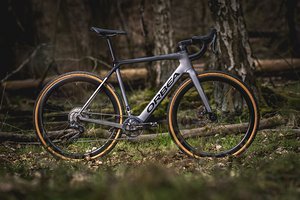

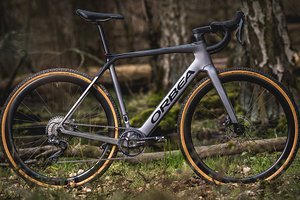

Orbea Gain M20 IX (2021) - Geometry

Compare these geometries with each other

The table can be moved.
Modell Orbea Gain M20 IX (2021) Orbea Gain M20 IX (2021) Orbea Gain M20 IX (2021) Orbea Gain M20 IX (2021) Orbea Gain M20 IX (2021)
Frame Size/Setup XS S M L XL
Typ Gravel-Bike/CycloCross-Bike Gravel-Bike/CycloCross-Bike Gravel-Bike/CycloCross-Bike Gravel-Bike/CycloCross-Bike Gravel-Bike/CycloCross-Bike
Wheel Size 28″ / 700C 28″ / 700C 28″ / 700C 28″ / 700C 28″ / 700C
Reach 366 mm 377 mm 388 mm 399 mm 410 mm
Stack 525 mm 550 mm 575 mm 600 mm 625 mm
STR 1,43 1,46 1,48 1,50 1,52
Reach+
Stack+
Front-Center
Head Angle 71° 71.5° 72° 72° 72.5°
Seat Angle, effective 75° 74.5° 74.5° 74° 74°
Seat Angle, real
Top Tube Length
Top Tube Length (horizontal) 507 mm 530 mm 547 mm 571 mm 589 mm
Head Tube Length 95 mm 120 mm 146 mm 172 mm 796 mm
Seat Tube Length 455 mm 485 mm 515 mm 545 mm 575 mm
Standover Height 708 mm 785.73 mm 819.5 mm 839 mm 872.68 mm
Chainstay Length 420 mm 420 mm 420 mm 420 mm 420 mm
Wheelbase 986 mm 1.000 mm 1.021 mm 1.040 mm 1.048 mm
Bottom Bracket Drop
Bottom Bracket Height
Fork installation height 400 mm 400 mm 400 mm 400 mm 400 mm
Fork offset 50 mm 50 mm 50 mm 50 mm 50 mm
Fork caster
Travel (rear) 0 mm 0 mm 0 mm 0 mm 0 mm
Travel (front) 0 mm 0 mm 0 mm 0 mm 0 mm
