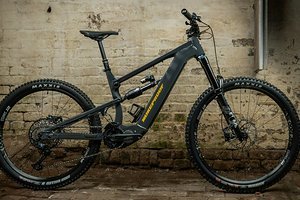

Nukeproof Megawatt (2022) - Geometry

Compare these geometries with each other

The table can be moved.
Modell Nukeproof Megawatt (2022) Nukeproof Megawatt (2022) Nukeproof Megawatt (2022) Nukeproof Megawatt (2022) Nukeproof Megawatt (2022)
Frame Size/Setup S M L XL XXL
Typ Mountainbike Mountainbike Mountainbike Mountainbike Mountainbike
Wheel Size Mullet 29/27,5 Mullet 29/27,5 Mullet 29/27,5 Mullet 29/27,5 Mullet 29/27,5
Reach 435 mm 455 mm 475 mm 495 mm 515 mm
Stack 640.74 mm 640.74 mm 645.24 mm 654.23 mm 663.21 mm
STR 1,47 1,41 1,36 1,32 1,29
Front-Center
Head Angle 64° 64° 64° 64° 64°
Seat Angle, effective 77.5° 77.5° 78° 78° 78°
Seat Angle, real
Top Tube Length
Top Tube Length (horizontal) 577.05 mm 597.05 mm 612.15 mm 634.06 mm 663.21 mm
Head Tube Length 115 mm 115 mm 120 mm 130 mm 140 mm
Seat Tube Length 380 mm 410 mm 440 mm 470 mm 500 mm
Standover Height 734.8 mm 731.06 mm 730.01 mm 732.88 mm 732.69 mm
Chainstay Length 442 mm 442 mm 442 mm 442 mm 442 mm
Wheelbase 1.221 mm 1.241 mm 1.263 mm 1.288 mm 1.312 mm
Bottom Bracket Drop
Bottom Bracket Height 345 mm 345 mm 345 mm 345 mm 345 mm
Fork installation height
Fork offset 44 mm 44 mm 44 mm 44 mm 44 mm
Fork caster
Travel (rear) 170 mm 170 mm 170 mm 170 mm 170 mm
Travel (front) 170 mm 170 mm 170 mm 170 mm 170 mm
