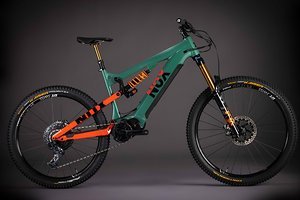

Nox Hybrid XC Trail (Brose) (2022) - Geometry

Compare these geometries with each other

The table can be moved.
Modell Nox Hybrid XC Trail (Brose) (2022) Nox Hybrid XC Trail (Brose) (2022) Nox Hybrid XC Trail (Brose) (2022) Nox Hybrid XC Trail (Brose) (2022)
Frame Size/Setup S M L XL
Typ Mountainbike Mountainbike Mountainbike Mountainbike
Wheel Size 29″ 29″ 29″ 29″ 29″ 29″ 29″ 29″
Reach 416 mm 416 mm 424 mm 424 mm 444 mm 444 mm 464 mm 464 mm
Stack 632 mm 632 mm 632 mm 632 mm 641 mm 641 mm 641 mm 641 mm
STR 1,52 1,52 1,49 1,49 1,44 1,44 1,38 1,38
Front-Center
Head Angle 67.2° 67.2° 67.2° 67.2° 67.2° 67.2° 67.2° 67.2°
Seat Angle, effective 74.7° 74.7° 74.7° 74.7° 74.7° 74.7° 74.7° 74.7°
Seat Angle, real
Top Tube Length 588 mm 588 mm 596 mm 596 mm 619 mm 619 mm 639 mm 639 mm
Top Tube Length (horizontal)
Head Tube Length 125 mm 125 mm 125 mm 125 mm 135 mm 135 mm 135 mm 135 mm
Seat Tube Length 396 mm 396 mm 418 mm 418 mm 453 mm 453 mm 481 mm 481 mm
Standover Height 804 mm 804 mm 805 mm 805 mm 808 mm 808 mm 809 mm 809 mm
Chainstay Length 469 mm 454 mm 469 mm 454 mm 469 mm 454 mm 469 mm 454 mm
Wheelbase 1.179 mm 1.164 mm 1.187 mm 1.172 mm 1.210 mm 1.195 mm 1.230 mm 1.215 mm
Bottom Bracket Drop 46 mm 46 mm 46 mm 46 mm 46 mm 46 mm 46 mm 46 mm
Bottom Bracket Height
Fork installation height
Fork offset
Fork caster
Travel (rear)
Travel (front) 120 mm 120 mm 120 mm 120 mm 120 mm 120 mm 120 mm 120 mm
