Compare these geometries with each other

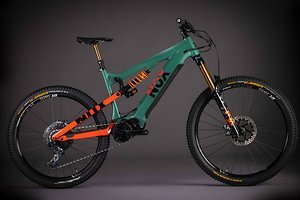

| Modell | Nox Hybrid Enduro 7.1 (Brose) (2022) | Nox Hybrid Enduro 7.1 (Brose) (2022) | Nox Hybrid Enduro 7.1 (Brose) (2022) | Nox Hybrid Enduro 7.1 (Brose) (2022) |
|---|---|---|---|---|
| Frame Size/Setup | S | M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | Mullet 29/27,5 Mullet 29/27,5 | Mullet 29/27,5 Mullet 29/27,5 | Mullet 29/27,5 Mullet 29/27,5 | Mullet 29/27,5 Mullet 29/27,5 |
| Reach | 409 mm 409 mm | 433 mm 433 mm | 456 mm 456 mm | 480 mm 480 mm |
| Stack | 613 mm 613 mm | 613 mm 613 mm | 623 mm 623 mm | 623 mm 623 mm |
| STR | 1,50 1,50 | 1,42 1,42 | 1,37 1,37 | 1,30 1,30 |
| Front-Center | ||||
| Head Angle | 64.7° 64.7° | 64.7° 64.7° | 64.7° 64.7° | 64.7° 64.7° |
| Seat Angle, effective | 73.7° 73.7° | 73.7° 73.7° | 73.7° 73.7° | 73.7° 73.7° |
| Seat Angle, real | ||||
| Top Tube Length | 585 mm 585 mm | 609 mm 609 mm | 635 mm 635 mm | 658 mm 658 mm |
| Top Tube Length (horizontal) | ||||
| Head Tube Length | 125 mm 125 mm | 125 mm 125 mm | 135 mm 135 mm | 135 mm 135 mm |
| Seat Tube Length | 400 mm 400 mm | 417 mm 417 mm | 453 mm 453 mm | 499 mm 499 mm |
| Standover Height | 858 mm 858 mm | 859 mm 859 mm | 864 mm 864 mm | 865 mm 865 mm |
| Chainstay Length | 465 mm 450 mm | 465 mm 450 mm | 465 mm 450 mm | 465 mm 450 mm |
| Wheelbase | 1.217 mm 1.203 mm | 1.241 mm 1.226 mm | 1.268 mm 1.253 mm | 1.292 mm 1.277 mm |
| Bottom Bracket Drop | 11 mm 11 mm | 10 mm 10 mm | 10 mm 10 mm | 10 mm 10 mm |
| Bottom Bracket Height | ||||
| Fork installation height | ||||
| Fork offset | ||||
| Fork caster | ||||
| Travel (rear) | 180 mm 180 mm | 180 mm 180 mm | 180 mm 180 mm | 180 mm 180 mm |
| Travel (front) | 180 mm 180 mm | 180 mm 180 mm | 180 mm 180 mm | 180 mm 180 mm |
