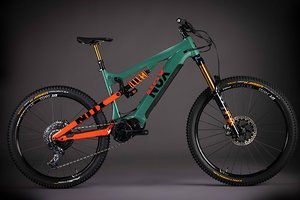

Nox Hybrid All-Mtn 5.9 (Brose) (2022) - Geometry

Compare these geometries with each other

The table can be moved.
Modell Nox Hybrid All-Mtn 5.9 (Brose) (2022) Nox Hybrid All-Mtn 5.9 (Brose) (2022) Nox Hybrid All-Mtn 5.9 (Brose) (2022) Nox Hybrid All-Mtn 5.9 (Brose) (2022)
Frame Size/Setup S M L XL
Typ Mountainbike Mountainbike Mountainbike Mountainbike
Wheel Size 29″ 29″ 29″ 29″ 29″ 29″ 29″ 29″
Reach 409 mm 409 mm 433 mm 433 mm 456 mm 456 mm 480 mm 480 mm
Stack 613 mm 613 mm 613 mm 613 mm 623 mm 623 mm 623 mm 623 mm
STR 1,50 1,50 1,42 1,42 1,37 1,37 1,30 1,30
Front-Center
Head Angle 64.7° 64.7° 64.7° 64.7° 64.7° 64.7° 64.7° 64.7°
Seat Angle, effective 73.7° 73.7° 73.7° 73.7° 73.7° 73.7° 73.7° 73.7°
Seat Angle, real
Top Tube Length 585 mm 585 mm 609 mm 609 mm 635 mm 635 mm 658 mm 658 mm
Top Tube Length (horizontal)
Head Tube Length 125 mm 125 mm 125 mm 125 mm 135 mm 135 mm 135 mm 135 mm
Seat Tube Length 400 mm 400 mm 417 mm 417 mm 453 mm 453 mm 499 mm 499 mm
Standover Height 853 mm 853 mm 855 mm 855 mm 860 mm 860 mm 861 mm 861 mm
Chainstay Length 468 mm 453 mm 468 mm 453 mm 468 mm 453 mm 468 mm 453 mm
Wheelbase 1.214 mm 1.199 mm 1.238 mm 1.223 mm 1.265 mm 1.250 mm 1.288 mm 1.273 mm
Bottom Bracket Drop 2 mm 2 mm 3 mm 2 mm 3 mm 2 mm 3 mm 2 mm
Bottom Bracket Height
Fork installation height
Fork offset
Fork caster
Travel (rear) 160 mm 160 mm 160 mm 160 mm 160 mm 160 mm 160 mm 160 mm
Travel (front) 160 mm 160 mm 160 mm 160 mm 160 mm 160 mm 160 mm 160 mm
