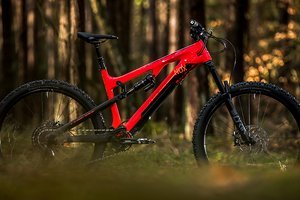

Nox Helium 5.9 (2022) - Geometry

Compare these geometries with each other

The table can be moved.
Modell Nox Helium 5.9 (2022) Nox Helium 5.9 (2022)
Frame Size/Setup M L
Typ Mountainbike Mountainbike
Wheel Size 29″ 29″ 29″ 29″
Reach 438 mm 438 mm 467 mm 467 mm
Stack 619 mm 619 mm 624 mm 624 mm
STR 1,41 1,41 1,34 1,34
Front-Center
Head Angle 64.2° 64.2° 64.2° 64.2°
Seat Angle, effective 73.7° 73.7° 73.7° 73.7°
Seat Angle, real
Top Tube Length
Top Tube Length (horizontal) 612 mm 612 mm 643 mm 643 mm
Head Tube Length 130 mm 130 mm 135 mm 135 mm
Seat Tube Length 428 mm 428 mm 473 mm 473 mm
Standover Height 861 mm 861 mm 868 mm 868 mm
Chainstay Length 465 mm 450 mm 465 mm 450 mm
Wheelbase 1.254 mm 1.239 mm 1.285 mm 1.270 mm
Bottom Bracket Drop 6 mm 6 mm 6 mm 6 mm
Bottom Bracket Height
Fork installation height
Fork offset
Fork caster
Travel (rear) 160 mm 160 mm 160 mm 160 mm
Travel (front) 160 mm 160 mm 160 mm 160 mm
