Compare these geometries with each other

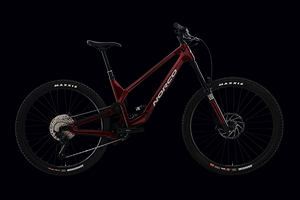

| Modell | Norco Range (2022) | Norco Range (2022) | Norco Range (2022) | Norco Range (2022) |
|---|---|---|---|---|
| Frame Size/Setup | S | M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ | 29″ | 29″ | 29″ |
| Reach | 420 mm | 450 mm | 480 mm | 510 mm |
| Stack | 618 mm | 630 mm | 641 mm | 653 mm |
| STR | 1,47 | 1,40 | 1,34 | 1,28 |
| Front-Center | ||||
| Head Angle | 63.75° | 63.5° | 63.25° | 63° |
| Seat Angle, effective | 76.5° | 76.75° | 77° | 77.25° |
| Seat Angle, real | ||||
| Top Tube Length | ||||
| Top Tube Length (horizontal) | 568 mm | 598 mm | 628 mm | 658 mm |
| Head Tube Length | 100 mm | 115 mm | 130 mm | 145 mm |
| Seat Tube Length | 370 mm | 395 mm | 410 mm | 455 mm |
| Standover Height | 662 mm | 663 mm | 665 mm | 695 mm |
| Chainstay Length | 440 mm | 440 mm | 442.5 mm | 447.5 mm |
| Wheelbase | 1.203 mm | 1.243 mm | 1.285 mm | 1.329 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm | 20 mm |
| Bottom Bracket Height | 355 mm | 355 mm | 355 mm | 355 mm |
| Fork installation height | ||||
| Fork offset | 44 mm | 44 mm | 44 mm | 44 mm |
| Fork caster | ||||
| Travel (rear) | 170 mm | 170 mm | 170 mm | 170 mm |
| Travel (front) | 170 mm | 170 mm | 170 mm | 170 mm |
