Compare these geometries with each other

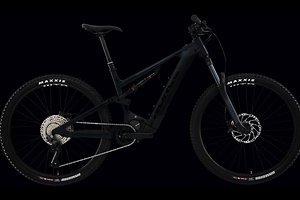

| Modell | Norco Fluid VLT Alu/Carbon (2022) | Norco Fluid VLT Alu/Carbon (2022) | Norco Fluid VLT Alu/Carbon (2022) | Norco Fluid VLT Alu/Carbon (2022) |
|---|---|---|---|---|
| Frame Size/Setup | S | M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ | 29″ | 29″ | 29″ |
| Reach | 410 mm | 440 mm | 470 mm | 500 mm |
| Stack | 600 mm | 609 mm | 618 mm | 627 mm |
| STR | 1,46 | 1,38 | 1,31 | 1,25 |
| Front-Center | ||||
| Head Angle | 65° | 65° | 65° | 65° |
| Seat Angle, effective | 75.5° | 75.8° | 76.2° | 76.5° |
| Seat Angle, real | ||||
| Top Tube Length | ||||
| Top Tube Length (horizontal) | 565 mm | 594 mm | 622 mm | 651 mm |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Seat Tube Length | 395 mm | 415 mm | 440 mm | 485 mm |
| Standover Height | ||||
| Chainstay Length | 462 mm | 462 mm | 462 mm | 462 mm |
| Wheelbase | 1.188 mm | 1.222 mm | 1.256 mm | 1.290 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Fork installation height | ||||
| Fork offset | 44 mm | 44 mm | 44 mm | 44 mm |
| Fork caster | ||||
| Travel (rear) | 130 mm | 130 mm | 130 mm | 130 mm |
| Travel (front) | 140 mm | 140 mm | 140 mm | 140 mm |
