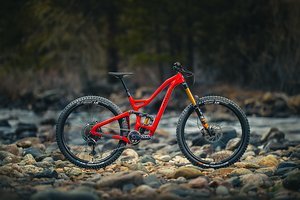

Niner WFO9 RDO (2021) - Geometry

Compare these geometries with each other

The table can be moved.
Modell Niner WFO9 RDO (2021) Niner WFO9 RDO (2021) Niner WFO9 RDO (2021)
Frame Size/Setup SM MD LG
Typ Mountainbike Mountainbike Mountainbike
Wheel Size 29″ 29″ 29″ 29″ 29″ 29″
Reach 437 mm 430 mm 457 mm 450 mm 487 mm 480 mm
Stack 621 mm 626 mm 626 mm 631 mm 630 mm 635 mm
STR 1,42 1,46 1,37 1,40 1,29 1,32
Reach+
Stack+
Front-Center
Head Angle 64.7° 64° 64.7° 64° 64.7° 64°
Seat Angle, effective 77.7° 77° 77.7° 77° 77.7° 77°
Seat Angle, real
Top Tube Length
Top Tube Length (horizontal) 573 mm 575 mm 595 mm 597 mm 625 mm 627 mm
Head Tube Length 90 mm 90 mm 95 mm 95 mm 100 mm 100 mm
Seat Tube Length 390 mm 390 mm 419 mm 419 mm 462 mm 462 mm
Standover Height 732 mm 725 mm 734 mm 727 mm 755 mm 748 mm
Chainstay Length 435 mm 438 mm 435 mm 438 mm 435 mm 438 mm
Wheelbase 1.203 mm 1.205 mm 1.225 mm 1.227 mm 1.257 mm 1.259 mm
Bottom Bracket Drop 19 mm 28 mm 19 mm 28 mm 19 mm 28 mm
Bottom Bracket Height
Fork installation height
Fork offset
Fork caster
Travel (rear) 170 mm 170 mm 170 mm 170 mm 170 mm 170 mm
Travel (front) 180 mm 180 mm 180 mm 180 mm 180 mm 180 mm
