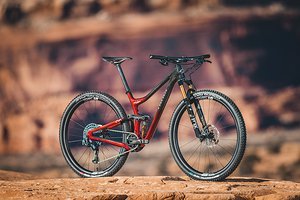

Niner RKT 9 RDO (2023) - Geometry

Compare these geometries with each other

The table can be moved.

Modell	Niner RKT 9 RDO (2023)	Niner RKT 9 RDO (2023)	Niner RKT 9 RDO (2023)	Niner RKT 9 RDO (2023)	Niner RKT 9 RDO (2023)
Frame Size/Setup	XS	SM	MD	LG	XL
	Show similar Compare in detail	Show similar Compare in detail	Show similar Compare in detail	Show similar Compare in detail	Show similar Compare in detail
Typ	Mountainbike	Mountainbike	Mountainbike	Mountainbike	Mountainbike
Wheel Size	29″ 29″	29″ 29″	29″ 29″	29″ 29″	29″ 29″
Reach	401 mm 405 mm	416 mm 420 mm	436 mm 440 mm	461 mm 465 mm	493 mm 497 mm
Stack	586 mm 583 mm	590 mm 586 mm	595 mm 592 mm	604 mm 601 mm	614 mm 611 mm
STR	1,46 1,44	1,42 1,40	1,36 1,35	1,31 1,29	1,25 1,23
Front-Center
Head Angle	67.6° 68°	67.6° 68°	67.6° 68°	67.6° 68°	67.6° 68°
Seat Angle, effective	74.6° 75°	74.6° 75°	74.6° 75°	74.6° 75°	74.6° 75°
Seat Angle, real
Top Tube Length
Top Tube Length (horizontal)	561 mm 561 mm	577 mm 577 mm	599 mm 599 mm	626 mm 626 mm	661 mm 661 mm
Head Tube Length	90 mm 90 mm	95 mm 95 mm	100 mm 100 mm	110 mm 110 mm	120 mm 120 mm
Seat Tube Length	351 mm 351 mm	376 mm 376 mm	406 mm 406 mm	446 mm 446 mm	497 mm 497 mm
Standover Height	657 mm 661 mm	670 mm 674 mm	672 mm 676 mm	701 mm 705 mm	736 mm 740 mm
Chainstay Length	430 mm 429 mm	430 mm 429 mm	430 mm 429 mm	430 mm 429 mm	430 mm 429 mm
Wheelbase	1.101 mm 1.101 mm	1.118 mm 1.118 mm	1.140 mm 1.140 mm	1.169 mm 1.169 mm	1.204 mm 1.204 mm
Bottom Bracket Drop	45 mm 40 mm	45 mm 40 mm	45 mm 40 mm	45 mm 40 mm	45 mm 40 mm
Bottom Bracket Height
Fork installation height
Fork offset	44 mm 44 mm	44 mm 44 mm	44 mm 44 mm	44 mm 44 mm	44 mm 44 mm
Fork caster
Travel (rear)	100 mm 100 mm	100 mm 100 mm	100 mm 100 mm	100 mm 100 mm	100 mm 100 mm
Travel (front)	100 mm 100 mm	100 mm 100 mm	100 mm 100 mm	100 mm 100 mm	100 mm 100 mm
