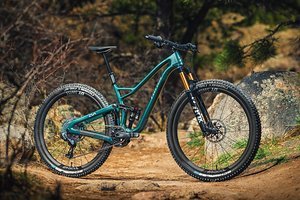

Niner Jet 9 RDO (2021) - Geometry
Compare these geometries with each other
The table can be moved.
| Modell | Niner Jet 9 RDO (2021) | Niner Jet 9 RDO (2021) | Niner Jet 9 RDO (2021) | Niner Jet 9 RDO (2021) |
|---|---|---|---|---|
| Frame Size/Setup | SM | MD | LG | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ 29″ | 29″ 29″ | 29″ 29″ | 29″ 29″ |
| Reach | 425 mm 419 mm | 450 mm 444 mm | 475 mm 469 mm | 500 mm 494 mm |
| Stack | 599 mm 603 mm | 613 mm 617 mm | 626 mm 631 mm | 640 mm 645 mm |
| STR | 1,41 1,44 | 1,36 1,39 | 1,32 1,35 | 1,28 1,31 |
| Reach+ | ||||
| Stack+ | ||||
| Front-Center | ||||
| Head Angle | 66.5° 66° | 66.5° 66° | 66.5° 66° | 66.5° 66° |
| Seat Angle, effective | 76° 75.5° | 76° 75.5° | 76° 75.5° | 76° 75.5° |
| Seat Angle, real | ||||
| Top Tube Length | 574 mm 577 mm | 603 mm 605 mm | 631 mm 634 mm | 660 mm 662 mm |
| Top Tube Length (horizontal) | ||||
| Head Tube Length | 95 mm 95 mm | 110 mm 110 mm | 125 mm 125 mm | 140 mm 140 mm |
| Seat Tube Length | 376 mm 376 mm | 406 mm 406 mm | 446 mm 446 mm | 496 mm 496 mm |
| Standover Height | 688 mm 681 mm | 698 mm 705 mm | 727 mm 734 mm | 778 mm 771 mm |
| Chainstay Length | 430 mm 432 mm | 430 mm 432 mm | 430 mm 432 mm | 430 mm 432 mm |
| Wheelbase | 1.148 mm 1.149 mm | 1.179 mm 1.180 mm | 1.210 mm 1.211 mm | 1.241 mm 1.242 mm |
| Bottom Bracket Drop | 33 mm 41 mm | 33 mm 41 mm | 33 mm 41 mm | 33 mm 41 mm |
| Bottom Bracket Height | ||||
| Fork installation height | ||||
| Fork offset | ||||
| Fork caster | ||||
| Travel (rear) | 120 mm 120 mm | 120 mm 120 mm | 120 mm 120 mm | 120 mm 120 mm |
| Travel (front) | 130 mm 130 mm | 130 mm 130 mm | 130 mm 130 mm | 130 mm 130 mm |
