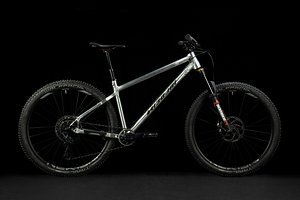

Nicolai Argon GAM (2022) - Geometry

Compare these geometries with each other

The table can be moved.
Modell Nicolai Argon GAM (2022) Nicolai Argon GAM (2022) Nicolai Argon GAM (2022) Nicolai Argon GAM (2022) Nicolai Argon GAM (2022)
Frame Size/Setup S M L XL XXL
Typ Mountainbike Mountainbike Mountainbike Mountainbike Mountainbike
Wheel Size 27,5″ / 650B 29″ 29″ 29″ 29″
Reach 450 mm 475 mm 495 mm 515 mm 540 mm
Stack 637 mm 646 mm 655 mm 672 mm 689 mm
STR 1,42 1,36 1,32 1,30 1,28
Front-Center
Head Angle 65° 65° 65° 65° 65°
Seat Angle, effective
Seat Angle, real 76.5° 76.5° 76.5° 76.5° 76.5°
Top Tube Length
Top Tube Length (horizontal) 603 mm 630 mm 652 mm 673 mm 702 mm
Head Tube Length 110 mm 120 mm 130 mm 150 mm 170 mm
Seat Tube Length 405 mm 440 mm 455 mm 475 mm 520 mm
Standover Height 714 mm 723 mm 737 mm 755 mm 797 mm
Chainstay Length 435 mm 445 mm 445 mm 450 mm 450 mm
Wheelbase 1.208 mm 1.242 mm 1.266 mm 1.302 mm 1.335 mm
Bottom Bracket Drop 40 mm 55 mm 55 mm 55 mm 55 mm
Bottom Bracket Height
Fork installation height 540 mm 550 mm 550 mm 550 mm 550 mm
Fork offset 44 mm 44 mm 44 mm 44 mm 44 mm
Fork caster
Travel (rear)
Travel (front) 140 mm 140 mm 140 mm 140 mm 140 mm
