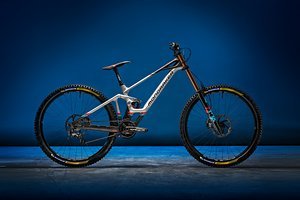

Mondraker Summum Carbon (2022) - Geometry
Compare these geometries with each other
The table can be moved.
| Modell | Mondraker Summum Carbon (2022) | Mondraker Summum Carbon (2022) | Mondraker Summum Carbon (2022) | Mondraker Summum Carbon (2022) |
|---|---|---|---|---|
| Frame Size/Setup | S | M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ | 29″ | 29″ | 29″ |
| Reach | 430 mm | 450 mm | 475 mm | 500 mm |
| Stack | 632 mm | 633 mm | 632 mm | 632 mm |
| STR | 1,47 | 1,41 | 1,33 | 1,26 |
| Reach+ | ||||
| Stack+ | ||||
| Front-Center | ||||
| Head Angle | 63° | 63.5° | 63.5° | 63.5° |
| Seat Angle, effective | 77° | 77° | 77° | 77° |
| Seat Angle, real | 69° | 68.5° | 69° | 69° |
| Top Tube Length | 575 mm | 595 mm | 620 mm | 645 mm |
| Top Tube Length (horizontal) | ||||
| Head Tube Length | 110 mm | 110 mm | 112 mm | 112 mm |
| Seat Tube Length | 400 mm | 400 mm | 400 mm | 400 mm |
| Standover Height | ||||
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1.260 mm | 1.270 mm | 1.295 mm | 1.320 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm | 20 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Fork installation height | ||||
| Fork offset | 56 mm | 56 mm | 56 mm | 56 mm |
| Fork caster | ||||
| Travel (rear) | 200 mm | 200 mm | 200 mm | 200 mm |
| Travel (front) | 200 mm | 200 mm | 200 mm | 200 mm |
