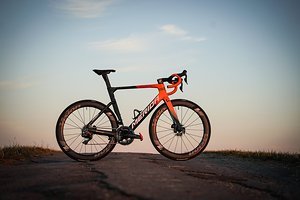

Merida Reacto Disc (2021) - Geometry
Compare these geometries with each other
The table can be moved.
| Modell | Merida Reacto Disc (2021) | Merida Reacto Disc (2021) | Merida Reacto Disc (2021) | Merida Reacto Disc (2021) | Merida Reacto Disc (2021) | Merida Reacto Disc (2021) |
|---|---|---|---|---|---|---|
| Frame Size/Setup | XXS | XS | S | M | L | XL |
| Typ | Rennrad | Rennrad | Rennrad | Rennrad | Rennrad | Rennrad |
| Wheel Size | 28″ / 700C | 28″ / 700C | 28″ / 700C | 28″ / 700C | 28″ / 700C | 28″ / 700C |
| Reach | 377 mm | 384 mm | 390 mm | 395 mm | 400 mm | 409 mm |
| Stack | 516 mm | 528 mm | 542 mm | 557 mm | 571 mm | 592 mm |
| STR | 1,37 | 1,38 | 1,39 | 1,41 | 1,43 | 1,45 |
| Reach+ | ||||||
| Stack+ | ||||||
| Front-Center | ||||||
| Head Angle | 70.5° | 72° | 72.5° | 73.5° | 73° | 73° |
| Seat Angle, effective | 74.5° | 74° | 74° | 73.5° | 73° | 73° |
| Seat Angle, real | ||||||
| Top Tube Length | 520 mm | 535 mm | 545 mm | 560 mm | 575 mm | 590 mm |
| Top Tube Length (horizontal) | ||||||
| Head Tube Length | 105 mm | 112 mm | 129 mm | 141 mm | 156 mm | 176 mm |
| Seat Tube Length | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Standover Height | ||||||
| Chainstay Length | ||||||
| Wheelbase | 985 mm | 982 mm | 989 mm | 990 mm | 1.000 mm | 1.009 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Bottom Bracket Height | ||||||
| Fork installation height | ||||||
| Fork offset | ||||||
| Fork caster | ||||||
| Travel (rear) | ||||||
| Travel (front) |
