Compare these geometries with each other

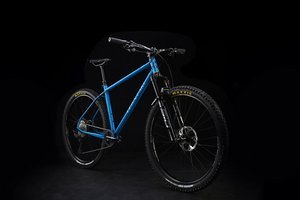

| Modell | Mason Raw (2022) | Mason Raw (2022) | Mason Raw (2022) | Mason Raw (2022) |
|---|---|---|---|---|
| Frame Size/Setup | S | M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ | 29″ | 29″ | 29″ |
| Reach | 426 mm | 451.2 mm | 471 mm | 494.3 mm |
| Stack | 610.3 mm | 619.4 mm | 628.5 mm | 637.7 mm |
| STR | 1,43 | 1,37 | 1,33 | 1,29 |
| Front-Center | ||||
| Head Angle | 66° | 66° | 66° | 66° |
| Seat Angle, effective | 75.2° | 75.1° | 75.1° | 75.4° |
| Seat Angle, real | ||||
| Top Tube Length | 565.5 mm | 588.4 mm | 606.6 mm | 630.4 mm |
| Top Tube Length (horizontal) | 577.7 mm | 606 mm | 628.4 mm | 654 mm |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Seat Tube Length | 395 mm | 430 mm | 470 mm | 505 mm |
| Standover Height | ||||
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1.151 mm | 1.180 mm | 1.204 mm | 1.231 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Bottom Bracket Height | ||||
| Fork installation height | ||||
| Fork offset | 44 mm | 44 mm | 44 mm | 44 mm |
| Fork caster | ||||
| Travel (rear) | ||||
| Travel (front) | 120 mm | 120 mm | 120 mm | 120 mm |
