Compare these geometries with each other

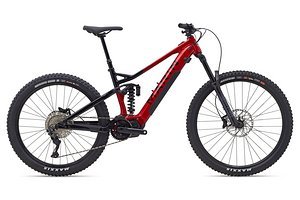

| Modell | Marin Bikes Alpine Trail E (2021) | Marin Bikes Alpine Trail E (2021) | Marin Bikes Alpine Trail E (2021) | Marin Bikes Alpine Trail E (2021) |
|---|---|---|---|---|
| Frame Size/Setup | S | M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | Mullet 29/27,5 | Mullet 29/27,5 | Mullet 29/27,5 | Mullet 29/27,5 |
| Reach | 445 mm | 465 mm | 485 mm | 505 mm |
| Stack | 613 mm | 622 mm | 631 mm | 640 mm |
| STR | 1,38 | 1,34 | 1,30 | 1,27 |
| Front-Center | ||||
| Head Angle | 63° | 63° | 63° | 63° |
| Seat Angle, effective | 78° | 78° | 78° | 78° |
| Seat Angle, real | ||||
| Top Tube Length | 575 mm | 597 mm | 619 mm | 641 mm |
| Top Tube Length (horizontal) | ||||
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Seat Tube Length | 390 mm | 400 mm | 425 mm | 430 mm |
| Standover Height | ||||
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1.215 mm | 1.239 mm | 1.264 mm | 1.288 mm |
| Bottom Bracket Drop | ||||
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Fork installation height | ||||
| Fork offset | ||||
| Fork caster | ||||
| Travel (rear) | 160 mm | 160 mm | 160 mm | 160 mm |
| Travel (front) | 150 mm | 150 mm | 150 mm | 150 mm |
