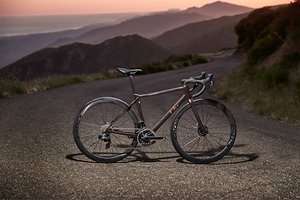

Liv Langma Advanced (2022) - Geometry

Compare these geometries with each other

The table can be moved.
Modell Liv Langma Advanced (2022) Liv Langma Advanced (2022) Liv Langma Advanced (2022) Liv Langma Advanced (2022) Liv Langma Advanced (2022)
Frame Size/Setup XXS XS S M L
Typ Rennrad Rennrad Rennrad Rennrad Rennrad
Wheel Size 28″ / 700C 28″ / 700C 28″ / 700C 28″ / 700C 28″ / 700C
Reach 364 mm 370 mm 377 mm 382 mm 396 mm
Stack 499 mm 517 mm 532 mm 553 mm 569 mm
STR 1,37 1,40 1,41 1,45 1,44
Front-Center
Head Angle 70° 71° 72° 72.5° 72.5°
Seat Angle, effective
Seat Angle, real 75° 75° 74.5° 74° 73.5°
Top Tube Length
Top Tube Length (horizontal) 498 mm 508 mm 524 mm 540 mm 555 mm
Head Tube Length 105 mm 120 mm 135 mm 155 mm 175 mm
Seat Tube Length 390 mm 420 mm 450 mm 480 mm 510 mm
Standover Height 680 mm 700 mm 730 mm 760 mm 790 mm
Chainstay Length 405 mm 405 mm 405 mm 405 mm 405 mm
Wheelbase 970 mm 973 mm 977 mm 984 mm 996 mm
Bottom Bracket Drop 72 mm 72 mm 70 mm 70 mm 67 mm
Bottom Bracket Height
Fork installation height
Fork offset 49 mm 49 mm 49 mm 49 mm 49 mm
Fork caster
Travel (rear)
Travel (front)
