Compare these geometries with each other

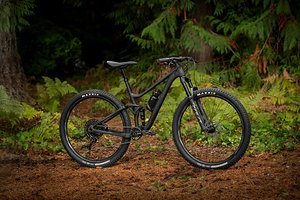

| Modell | Liv Embolden 29" (2022) | Liv Embolden 29" (2022) | Liv Embolden 29" (2022) |
|---|---|---|---|
| Frame Size/Setup | S | M | L |
| Typ | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ | 29″ | 29″ |
| Reach | 412 mm | 430 mm | 447 mm |
| Stack | 614 mm | 623 mm | 632 mm |
| STR | 1,49 | 1,45 | 1,41 |
| Front-Center | |||
| Head Angle | 67° | 67° | 67° |
| Seat Angle, effective | 76° | 76° | 76° |
| Seat Angle, real | |||
| Top Tube Length | 565 mm | 585 mm | 605 mm |
| Top Tube Length (horizontal) | |||
| Head Tube Length | 105 mm | 115 mm | 125 mm |
| Seat Tube Length | 405 mm | 420 mm | 440 mm |
| Standover Height | 712 mm | 734 mm | 755 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1.147 mm | 1.169 mm | 1.190 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm |
| Bottom Bracket Height | |||
| Fork installation height | |||
| Fork offset | |||
| Fork caster | |||
| Travel (rear) | 120 mm | 120 mm | 120 mm |
| Travel (front) | 130 mm | 130 mm | 130 mm |
