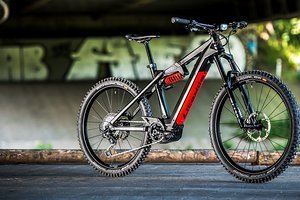

Liteville 301CE MK1 (2020) - Geometry

Compare these geometries with each other

The table can be moved.
Modell Liteville 301CE MK1 (2020) Liteville 301CE MK1 (2020) Liteville 301CE MK1 (2020) Liteville 301CE MK1 (2020)
Frame Size/Setup S M L XL
Typ Mountainbike Mountainbike Mountainbike Mountainbike
Wheel Size 29″ 29″ 29″ 29″
Reach 417 mm 447 mm 470 mm 488 mm
Stack 614 mm 643.3 mm 652.3 mm 670.6 mm
STR 1,47 1,44 1,39 1,37
Front-Center
Head Angle 64.2° 64.5° 64.5° 64.1°
Seat Angle, effective 75.4° 76° 76° 75.8°
Seat Angle, real
Top Tube Length
Top Tube Length (horizontal) 583.8 mm 607 mm 632.8 mm 658 mm
Head Tube Length 90 mm 105 mm 115 mm 140 mm
Seat Tube Length 417 mm 446 mm 470 mm 494 mm
Standover Height
Chainstay Length 435 mm 442 mm 442 mm 452 mm
Wheelbase 1.175 mm 1.226 mm 1.254 mm 1.299 mm
Bottom Bracket Drop 24 mm 16.3 mm 16.3 mm 14.8 mm
Bottom Bracket Height
Fork installation height 561 mm 586 mm 586 mm 586 mm
Fork offset 42 mm 44 mm 44 mm 44 mm
Fork caster 134.4 mm 129.8 mm 129.8 mm 133.2 mm
Travel (rear) 160 mm 160 mm 160 mm 160 mm
Travel (front) 170 mm 170 mm 170 mm 170 mm

Notes

Geometriedaten bei Gr. S mit RockShox Lyrik 170 mm und ab Gr. M mit RockShox ZEB 170 mm
