Compare these geometries with each other

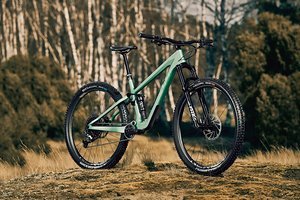

| Modell | Last Asco (150 mm) (2022) | Last Asco (150 mm) (2022) | Last Asco (150 mm) (2022) | Last Asco (150 mm) (2022) |
|---|---|---|---|---|
| Frame Size/Setup | 170 | 180 | 190 | 200 |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ | 29″ | 29″ | 29″ |
| Reach | 443 mm | 465 mm | 496 mm | 529 mm |
| Stack | 609 mm | 622 mm | 631 mm | 640 mm |
| STR | 1,37 | 1,34 | 1,27 | 1,21 |
| Front-Center | ||||
| Head Angle | 65.1° | 65° | 65° | 65° |
| Seat Angle, effective | 77.4° | 76.8° | 77.1° | 77.3° |
| Seat Angle, real | 70.8° | 70.2° | 71.8° | 73.3° |
| Top Tube Length | ||||
| Top Tube Length (horizontal) | 580 mm | 611 mm | 641 mm | 674 mm |
| Head Tube Length | 95 mm | 110 mm | 120 mm | 130 mm |
| Seat Tube Length | 385 mm | 415 mm | 455 mm | 510 mm |
| Standover Height | 722 mm | 720 mm | 725 mm | 729 mm |
| Chainstay Length | 431 mm | 431 mm | 437 mm | 443 mm |
| Wheelbase | 1.189 mm | 1.218 mm | 1.259 mm | 1.303 mm |
| Bottom Bracket Drop | 31 mm | 31 mm | 31 mm | 30 mm |
| Bottom Bracket Height | ||||
| Fork installation height | 562 mm | 562 mm | 562 mm | 562 mm |
| Fork offset | 42 mm | 42 mm | 42 mm | 42 mm |
| Fork caster | ||||
| Travel (rear) | 130 mm | 130 mm | 130 mm | 130 mm |
| Travel (front) | 150 mm | 150 mm | 150 mm | 150 mm |
