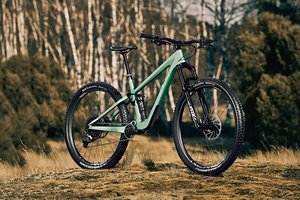

Last Asco (140 mm) (2022) - Geometry

Compare these geometries with each other

The table can be moved.
Modell Last Asco (140 mm) (2022) Last Asco (140 mm) (2022) Last Asco (140 mm) (2022) Last Asco (140 mm) (2022)
Frame Size/Setup 170 180 190 200
Typ Mountainbike Mountainbike Mountainbike Mountainbike
Wheel Size 29″ 29″ 29″ 29″
Reach 448 mm 470 mm 500 mm 533 mm
Stack 605 mm 619 mm 628 mm 636 mm
STR 1,35 1,32 1,26 1,19
Reach+
Stack+
Front-Center
Head Angle 65.5° 65.5° 65.4° 65.3°
Seat Angle, effective 77.8° 77.3° 77.5° 77.6°
Seat Angle, real 71.3° 70.6° 72.2° 73.7°
Top Tube Length
Top Tube Length (horizontal) 579 mm 610 mm 640 mm 673 mm
Head Tube Length 95 mm 110 mm 120 mm 130 mm
Seat Tube Length 385 mm 415 mm 455 mm 510 mm
Standover Height 716 mm 715 mm 719 mm 723 mm
Chainstay Length 431 mm 431 mm 437 mm 443 mm
Wheelbase 1.185 mm 1.214 mm 1.255 mm 1.299 mm
Bottom Bracket Drop 34 mm 34 mm 34 mm 34 mm
Bottom Bracket Height
Fork installation height 552 mm 552 mm 552 mm 552 mm
Fork offset 42 mm 42 mm 42 mm 42 mm
Fork caster
Travel (rear) 130 mm 130 mm 130 mm 130 mm
Travel (front) 140 mm 140 mm 140 mm 140 mm
