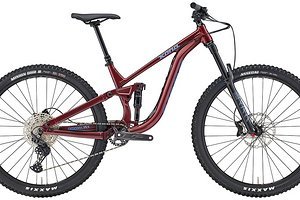

Kona Process 153 29 (2022) - Geometry
Compare these geometries with each other
The table can be moved.
| Modell | Kona Process 153 29 (2022) | Kona Process 153 29 (2022) | Kona Process 153 29 (2022) |
|---|---|---|---|
| Frame Size/Setup | M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ | 29″ | 29″ |
| Reach | 455 mm | 480 mm | 515 mm |
| Stack | 615 mm | 625 mm | 635 mm |
| STR | 1,35 | 1,30 | 1,23 |
| Reach+ | |||
| Stack+ | |||
| Front-Center | 781 mm | 811 mm | 851 mm |
| Head Angle | 64.5° | 64.5° | 64.5° |
| Seat Angle, effective | 76.9° | 76.7° | 76.6° |
| Seat Angle, real | |||
| Top Tube Length | |||
| Top Tube Length (horizontal) | 599 mm | 628 mm | 667 mm |
| Head Tube Length | 97 mm | 108 mm | 119 mm |
| Seat Tube Length | 410 mm | 450 mm | 485 mm |
| Standover Height | 700 mm | 710 mm | 720 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1.215 mm | 1.244 mm | 1.284 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm |
| Fork installation height | 571 mm | 571 mm | 571 mm |
| Fork offset | 42 mm | 42 mm | 42 mm |
| Fork caster | |||
| Travel (rear) | 153 mm | 153 mm | 153 mm |
| Travel (front) | 160 mm | 160 mm | 160 mm |
