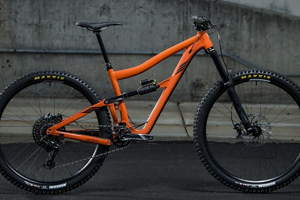

Ibis Ripmo AF (2020) - Geometry

Compare these geometries with each other

The table can be moved.
Modell Ibis Ripmo AF (2020) Ibis Ripmo AF (2020) Ibis Ripmo AF (2020) Ibis Ripmo AF (2020)
Frame Size/Setup S M L XL
Typ Mountainbike Mountainbike Mountainbike Mountainbike
Wheel Size 29″ 29″ 29″ 29″
Reach 431 mm 458 mm 475 mm 495 mm
Stack 613 mm 620 mm 629 mm 642 mm
STR 1,42 1,35 1,32 1,30
Reach+
Stack+
Front-Center
Head Angle 64.9° 64.9° 64.9° 64.9°
Seat Angle, effective 77° 76° 76° 76°
Seat Angle, real
Top Tube Length
Top Tube Length (horizontal) 573 mm 603 mm 632 mm 655 mm
Head Tube Length 90 mm 100 mm 110 mm 120 mm
Seat Tube Length 368 mm 380 mm 432 mm 483 mm
Standover Height 705 mm 750 mm 750 mm 760 mm
Chainstay Length 435 mm 435 mm 435 mm 435 mm
Wheelbase 1.185 mm 1.216 mm 1.237 mm 1.262 mm
Bottom Bracket Drop 30 mm 30 mm 30 mm 30 mm
Bottom Bracket Height
Fork installation height 572 mm 572 mm 572 mm 572 mm
Fork offset 44 mm 44 mm 44 mm 44 mm
Fork caster 114 mm 114 mm 114 mm 114 mm
Travel (rear) 147 mm 147 mm 147 mm 147 mm
Travel (front) 160 mm 160 mm 160 mm 160 mm

Notes

Tretlagerhöhe mit 2,6" Schwalbe Nobby Nic
Effektiver Sitzwinkel ermittelt mit Sattelhöhe S: 650 mm / M: 700 mm / L: 750 mm / XL: 810 mm
