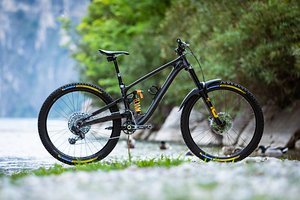

Hope HB.916 (2022) - Geometry
Compare these geometries with each other
The table can be moved.
| Modell | Hope HB.916 (2022) | Hope HB.916 (2022) | Hope HB.916 (2022) | Hope HB.916 (2022) |
|---|---|---|---|---|
| Frame Size/Setup | H1 | H2 | H3 | H4 |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ 29″ | 29″ 29″ | 29″ 29″ | 29″ 29″ |
| Reach | 450 mm 447 mm | 470 mm 467 mm | 490 mm 487 mm | 510 mm 507 mm |
| Stack | 628 mm 627 mm | 637 mm 636 mm | 646 mm 645 mm | 655 mm 654 mm |
| STR | 1,40 1,40 | 1,36 1,36 | 1,32 1,32 | 1,28 1,29 |
| Reach+ | ||||
| Stack+ | ||||
| Front-Center | ||||
| Head Angle | 64° 63.2° | 64° 63.2° | 64° 63.2° | 64° 63.2° |
| Seat Angle, effective | 78° 78.2° | 77.9° 78.1° | 77.7° 77.9° | 77.5° 77.5° |
| Seat Angle, real | 75.4° 75.6° | 75.5° 75.7° | 75.5° 75.7° | 75.4° 75.6° |
| Top Tube Length | ||||
| Top Tube Length (horizontal) | 583.5 mm 580.5 mm | 606.5 mm 603.5 mm | 631 mm 628 mm | 655 mm 652 mm |
| Head Tube Length | 100 mm 100 mm | 110 mm 110 mm | 120 mm 120 mm | 130 mm 130 mm |
| Seat Tube Length | 359 mm 359 mm | 410 mm 410 mm | 440 mm 440 mm | 470 mm 470 mm |
| Standover Height | 700 mm 700 mm | 710 mm 710 mm | 725 mm 725 mm | 740 mm 740 mm |
| Chainstay Length | 440 mm 440 mm | 440 mm 440 mm | 440 mm 440 mm | 440 mm 440 mm |
| Wheelbase | 1.230 mm 1.238 mm | 1.254 mm 1.262 mm | 1.278 mm 1.286 mm | 1.303 mm 1.311 mm |
| Bottom Bracket Drop | 30 mm 31.5 mm | 30 mm 31.5 mm | 30 mm 31.5 mm | 30 mm 31.5 mm |
| Bottom Bracket Height | 344 mm 342.5 mm | 344 mm 342.5 mm | 344 mm 342.5 mm | 344 mm 342.5 mm |
| Fork installation height | ||||
| Fork offset | ||||
| Fork caster | 44 mm 44 mm | 44 mm 44 mm | 44 mm 44 mm | 44 mm 44 mm |
| Travel (rear) | 160 mm 160 mm | 160 mm 160 mm | 160 mm 160 mm | 160 mm 160 mm |
| Travel (front) | 170 mm 170 mm | 170 mm 170 mm | 170 mm 170 mm | 170 mm 170 mm |
