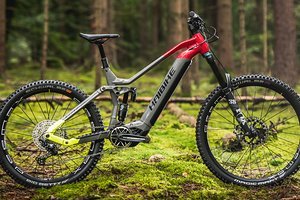

Haibike NDURO (2022) - Geometry

Compare these geometries with each other

The table can be moved.
Modell Haibike NDURO (2022) Haibike NDURO (2022) Haibike NDURO (2022) Haibike NDURO (2022)
Frame Size/Setup S M L XL
Typ Mountainbike Mountainbike Mountainbike Mountainbike
Wheel Size Mullet 29/27,5 Mullet 29/27,5 Mullet 29/27,5 Mullet 29/27,5
Reach 425 mm 455 mm 480 mm 510 mm
Stack 644 mm 644 mm 653 mm 662 mm
STR 1,52 1,42 1,36 1,30
Front-Center
Head Angle 63.5° 63.5° 63.5° 63.5°
Seat Angle, effective 77° 77° 77° 76.9°
Seat Angle, real
Top Tube Length
Top Tube Length (horizontal) 574 mm 604 mm 631 mm 663 mm
Head Tube Length 120 mm 120 mm 130 mm 140 mm
Seat Tube Length 410 mm 440 mm 465 mm 495 mm
Standover Height
Chainstay Length 460 mm 460 mm 460 mm 460 mm
Wheelbase 1.245 mm 1.275 mm 1.305 mm 1.339 mm
Bottom Bracket Drop -5 mm -5 mm -5 mm -5 mm
Bottom Bracket Height
Fork installation height
Fork offset
Fork caster
Travel (rear) 180 mm 180 mm 180 mm 180 mm
Travel (front) 180 mm 180 mm 180 mm 180 mm
