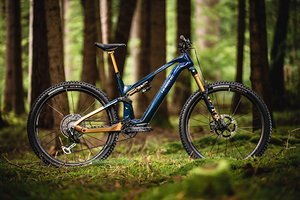

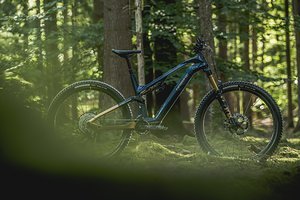

Haibike Lyke CF (2023) - Geometry
Compare these geometries with each other
Die Tabelle lässt sich verschieben.
| Modell | Haibike Lyke CF (2023) | Haibike Lyke CF (2023) | Haibike Lyke CF (2023) | Haibike Lyke CF (2023) |
|---|---|---|---|---|
| Frame Size/Setup | S | M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ | 29″ | 29″ | 29″ |
| Reach | 424 mm | 452 mm | 479 mm | 506 mm |
| Stack | 611 mm | 620 mm | 629 mm | 638 mm |
| STR | 1.44 | 1.37 | 1.31 | 1.26 |
| Reach+ | ||||
| Stack+ | ||||
| Frame RAD | 744 mm | 767 mm | 791 mm | 814 mm |
| Frame RAAD | 34.8° | 36.1° | 37.3° | 38.4° |
| Front-Center | ||||
| Head Angle | 65° | 65° | 65° | 65° |
| Seat Angle, effective | 77.3° | 77.3° | 77.3° | 77.3° |
| Seat Angle, real | 74° | 74° | 74° | 74° |
| Top Tube Length | ||||
| Top Tube Length (horizontal) | 562 mm | 592 mm | 622 mm | 652 mm |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| Seat Tube Length | 410 mm | 440 mm | 470 mm | 500 mm |
| Standover Height | ||||
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1,195 mm | 1,227 mm | 1,259 mm | 1,290 mm |
| FC2RC | 1.66 | 1.73 | 1.80 | 1.87 |
| Bottom Bracket Drop | -25 mm | -25 mm | -25 mm | -25 mm |
| Bottom Bracket Height | ||||
| Fork installation height | ||||
| Fork offset | ||||
| Trail | ||||
| Travel (rear) | 140 mm | 140 mm | 140 mm | 140 mm |
| Travel (front) | 140 mm | 140 mm | 140 mm | 140 mm |
