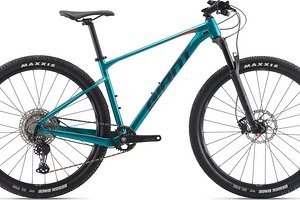

Giant XTC SLR (2021) - Geometry

Compare these geometries with each other

The table can be moved.
Modell Giant XTC SLR (2021) Giant XTC SLR (2021) Giant XTC SLR (2021) Giant XTC SLR (2021)
Frame Size/Setup S M L XL
Typ Mountainbike Mountainbike Mountainbike Mountainbike
Wheel Size 29″ 29″ 29″ 29″
Reach 421 mm 440 mm 458 mm 485 mm
Stack 607 mm 607 mm 618 mm 628 mm
STR 1,44 1,38 1,35 1,29
Reach+
Stack+
Front-Center
Head Angle 69.5° 69.5° 70° 70°
Seat Angle, effective 74° 74° 74° 74°
Seat Angle, real 74° 74° 74° 74°
Top Tube Length 595 mm 614 mm 635 mm 665 mm
Top Tube Length (horizontal)
Head Tube Length 95 mm 95 mm 105 mm 115 mm
Seat Tube Length 380 mm 431 mm 475 mm 525 mm
Standover Height 727 mm 757 mm 785 mm 818 mm
Chainstay Length 440 mm 440 mm 440 mm 440 mm
Wheelbase 1.117 mm 1.136 mm 1.152 mm 1.183 mm
Bottom Bracket Drop 58 mm 58 mm 58 mm 58 mm
Bottom Bracket Height
Fork installation height
Fork offset 51 mm 51 mm 51 mm 51 mm
Fork caster
Travel (rear)
Travel (front)
