Compare these geometries with each other

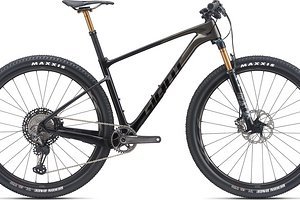

| Modell | Giant XTC Advanced SL (2021) | Giant XTC Advanced SL (2021) | Giant XTC Advanced SL (2021) | Giant XTC Advanced SL (2021) |
|---|---|---|---|---|
| Frame Size/Setup | S | M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ | 29″ | 29″ | 29″ |
| Reach | 416 mm | 435 mm | 453 mm | 477 mm |
| Stack | 604 mm | 604 mm | 613 mm | 632 mm |
| STR | 1,45 | 1,39 | 1,35 | 1,32 |
| Front-Center | ||||
| Head Angle | 69.5° | 69.5° | 70° | 70° |
| Seat Angle, effective | 73.5° | 73.5° | 73.5° | 73.5° |
| Seat Angle, real | 73.5° | 73.5° | 73.5° | 73.5° |
| Top Tube Length | 595 mm | 614 mm | 635 mm | 665 mm |
| Top Tube Length (horizontal) | ||||
| Head Tube Length | 95 mm | 95 mm | 105 mm | 115 mm |
| Seat Tube Length | 380 mm | 431 mm | 475 mm | 525 mm |
| Standover Height | 737 mm | 764 mm | 791 mm | 829 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1.087 mm | 1.106 mm | 1.128 mm | 1.159 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 58 mm | 58 mm |
| Bottom Bracket Height | ||||
| Fork installation height | ||||
| Fork offset | 43 mm | 43 mm | 43 mm | 43 mm |
| Fork caster | ||||
| Travel (rear) | ||||
| Travel (front) |
