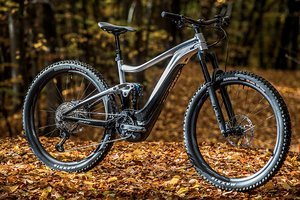

Giant Trance X E+ 1 (2021) - Geometry
Compare these geometries with each other
Die Tabelle lässt sich verschieben.
| Modell | Giant Trance X E+ 1 (2021) | Giant Trance X E+ 1 (2021) | Giant Trance X E+ 1 (2021) | Giant Trance X E+ 1 (2021) |
|---|---|---|---|---|
| Frame Size/Setup | S | M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ 29″ | 29″ 29″ | 29″ 29″ | 29″ 29″ |
| Reach | 433 mm 423 mm | 462 mm 452 mm | 489 mm 480 mm | 517 mm 508 mm |
| Stack | 602 mm 608 mm | 607 mm 613 mm | 616 mm 622 mm | 625 mm 631 mm |
| STR | 1,39 1,44 | 1,31 1,36 | 1,26 1,30 | 1,21 1,24 |
| Reach+ | ||||
| Stack+ | ||||
| Front-Center | ||||
| Head Angle | 66.5° 65.8° | 66.5° 65.8° | 66.5° 65.8° | 66.5° 65.8° |
| Seat Angle, effective | 76.7° 76° | 76.7° 76° | 76.7° 76° | 76.7° 76° |
| Seat Angle, real | ||||
| Top Tube Length | 575 mm 575 mm | 605 mm 605 mm | 635 mm 635 mm | 665 mm 665 mm |
| Top Tube Length (horizontal) | ||||
| Head Tube Length | 95 mm 95 mm | 100 mm 100 mm | 110 mm 110 mm | 120 mm 120 mm |
| Seat Tube Length | 400 mm 400 mm | 425 mm 425 mm | 450 mm 450 mm | 475 mm 475 mm |
| Standover Height | ||||
| Chainstay Length | 472 mm 472 mm | 472 mm 472 mm | 472 mm 472 mm | 472 mm 472 mm |
| Wheelbase | 1.205 mm 1.202 mm | 1.236 mm 1.233 mm | 1.268 mm 1.265 mm | 1.299 mm 1.297 mm |
| Bottom Bracket Drop | ||||
| Bottom Bracket Height | ||||
| Fork installation height | ||||
| Fork offset | ||||
| Trail | ||||
| Travel (rear) | 140 mm 140 mm | 140 mm 140 mm | 140 mm 140 mm | 140 mm 140 mm |
| Travel (front) | 150 mm 150 mm | 150 mm 150 mm | 150 mm 150 mm | 150 mm 150 mm |
