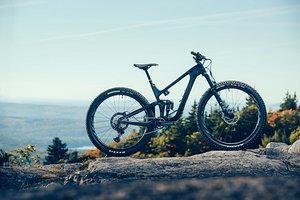

Giant Trance Pro (2022) - Geometry
Compare these geometries with each other
Die Tabelle lässt sich verschieben.
| Modell | Giant Trance Pro (2022) | Giant Trance Pro (2022) | Giant Trance Pro (2022) | Giant Trance Pro (2022) |
|---|---|---|---|---|
| Frame Size/Setup | S | M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ 29″ | 29″ 29″ | 29″ 29″ | 29″ 29″ |
| Reach | 422 mm 430 mm | 447 mm 455 mm | 472 mm 480 mm | 507 mm 515 mm |
| Stack | 610 mm 604 mm | 619 mm 613 mm | 628 mm 622 mm | 637 mm 631 mm |
| STR | 1.45 1.40 | 1.38 1.35 | 1.33 1.30 | 1.26 1.23 |
| Reach+ | ||||
| Stack+ | ||||
| Frame RAD | 742 mm 741 mm | 764 mm 763 mm | 786 mm 786 mm | 814 mm 814 mm |
| Frame RAAD | 34.7° 35.4° | 35.8° 36.6° | 36.9° 37.7° | 38.5° 39.2° |
| Front-Center | ||||
| Head Angle | 65.4° 66.2° | 65.5° 66.2° | 65.5° 66.2° | 65.5° 66.2° |
| Seat Angle, effective | 77.2° 78° | 76.3° 77° | 76.3° 77° | 76.3° 77° |
| Seat Angle, real | ||||
| Top Tube Length | ||||
| Top Tube Length (horizontal) | 561 mm 559 mm | 599 mm 597 mm | 626 mm 624 mm | 663 mm 661 mm |
| Head Tube Length | 100 mm 100 mm | 110 mm 110 mm | 120 mm 120 mm | 130 mm 130 mm |
| Seat Tube Length | 420 mm 420 mm | 430 mm 430 mm | 465 mm 465 mm | 496 mm 496 mm |
| Standover Height | 729 mm 737 mm | 723 mm 732 mm | 746 mm 755 mm | 751 mm 760 mm |
| Chainstay Length | 439 mm 437 mm | 439 mm 437 mm | 439 mm 437 mm | 439 mm 437 mm |
| Wheelbase | 1,166 mm 1,165 mm | 1,195 mm 1,194 mm | 1,124 mm 1,123 mm | 1,263 mm 1,262 mm |
| FC2RC | 1.66 1.67 | 1.72 1.73 | 1.56 1.57 | 1.88 1.89 |
| Bottom Bracket Drop | 45 mm 35 mm | 45 mm 35 mm | 45 mm 35 mm | 45 mm 35 mm |
| Bottom Bracket Height | ||||
| Fork installation height | ||||
| Fork offset | 44 mm 44 mm | 44 mm 44 mm | 44 mm 44 mm | 44 mm 44 mm |
| Trail | ||||
| Travel (rear) | 120 mm 120 mm | 120 mm 120 mm | 120 mm 120 mm | 120 mm 120 mm |
| Travel (front) | 130 mm 130 mm | 130 mm 130 mm | 130 mm 130 mm | 130 mm 130 mm |
