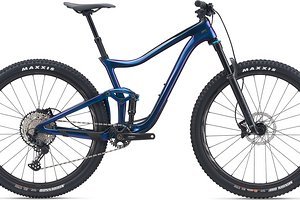

Giant Trance Advanced Pro 2 (2021) - Geometry

Compare these geometries with each other

The table can be moved.
Modell Giant Trance Advanced Pro 2 (2021) Giant Trance Advanced Pro 2 (2021) Giant Trance Advanced Pro 2 (2021) Giant Trance Advanced Pro 2 (2021)
Frame Size/Setup S M L XL
Typ Mountainbike Mountainbike Mountainbike Mountainbike
Wheel Size 29″ 29″ 29″ 29″
Reach 426 mm 442 mm 462 mm 480 mm
Stack 599 mm 613 mm 613 mm 622 mm
STR 1,41 1,39 1,33 1,30
Front-Center
Head Angle 66.5° 66.5° 66.5° 66.5°
Seat Angle, effective 74.5° 74.5° 74.5° 74.5°
Seat Angle, real
Top Tube Length 592 mm 612 mm 632 mm 652 mm
Top Tube Length (horizontal)
Head Tube Length 95 mm 110 mm 110 mm 120 mm
Seat Tube Length 380 mm 431 mm 464 mm 496 mm
Standover Height 708 mm 740 mm 761 mm 785 mm
Chainstay Length 435 mm 435 mm 435 mm 435 mm
Wheelbase 1.154 mm 1.176 mm 1.196 mm 1.218 mm
Bottom Bracket Drop 35 mm 35 mm 35 mm 35 mm
Bottom Bracket Height
Fork installation height
Fork offset 44 mm 44 mm 44 mm 44 mm
Fork caster
Travel (rear) 115 mm 115 mm 115 mm 115 mm
Travel (front) 130 mm 130 mm 130 mm 130 mm
