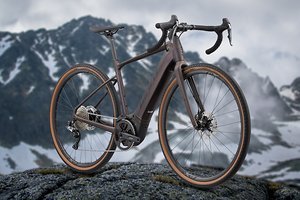

Giant Revolt E+ (2022) - Geometry

Compare these geometries with each other

Die Tabelle lässt sich verschieben.
Modell Giant Revolt E+ (2022) Giant Revolt E+ (2022) Giant Revolt E+ (2022) Giant Revolt E+ (2022) Giant Revolt E+ (2022)
Frame Size/Setup S M M/L L XL
Typ Gravel-Bike/CycloCross-Bike Gravel-Bike/CycloCross-Bike Gravel-Bike/CycloCross-Bike Gravel-Bike/CycloCross-Bike Gravel-Bike/CycloCross-Bike
Wheel Size 28″ / 700C 28″ / 700C 28″ / 700C 28″ / 700C 28″ / 700C
Reach 380 mm 375 mm 381 mm 387 mm 397 mm
Stack 573 mm 587 mm 601 mm 615 mm 629 mm
STR 1,51 1,57 1,58 1,59 1,58
Reach+
Stack+
Front-Center
Head Angle 69° 69° 69° 69° 69°
Seat Angle, effective 73.5° 73° 73° 73° 73°
Seat Angle, real
Top Tube Length 555 mm 555 mm 565 mm 575 mm 590 mm
Top Tube Length (horizontal)
Head Tube Length 135 mm 150 mm 165 mm 180 mm 195 mm
Seat Tube Length 450 mm 475 mm 500 mm 525 mm 550 mm
Standover Height
Chainstay Length 455 mm 455 mm 455 mm 455 mm 455 mm
Wheelbase 1.049 mm 1.049 mm 1.059 mm 1.070 mm 1.085 mm
FC2RC 1,31 1,31 1,33 1,35 1,38
Bottom Bracket Drop 85 mm 85 mm 85 mm 85 mm 85 mm
Bottom Bracket Height
Fork installation height
Fork offset 50 mm 50 mm 50 mm 50 mm 50 mm
Trail
Travel (rear) 0 mm 0 mm 0 mm 0 mm 0 mm
Travel (front) 0 mm 0 mm 0 mm 0 mm 0 mm
