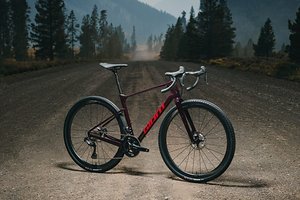

Giant Revolt (2022) - Geometry
Compare these geometries with each other
Die Tabelle lässt sich verschieben.
| Modell | Giant Revolt (2022) | Giant Revolt (2022) | Giant Revolt (2022) | Giant Revolt (2022) | Giant Revolt (2022) | Giant Revolt (2022) |
|---|---|---|---|---|---|---|
| Frame Size/Setup | XS | S | M | ML | L | XL |
| Typ | Gravel-Bike/CycloCross-Bike | Gravel-Bike/CycloCross-Bike | Gravel-Bike/CycloCross-Bike | Gravel-Bike/CycloCross-Bike | Gravel-Bike/CycloCross-Bike | Gravel-Bike/CycloCross-Bike |
| Wheel Size | 28″ / 700C 28″ / 700C | 28″ / 700C 28″ / 700C | 28″ / 700C 28″ / 700C | 28″ / 700C 28″ / 700C | 28″ / 700C 28″ / 700C | 28″ / 700C 28″ / 700C |
| Reach | 381 mm 381 mm | 381 mm 381 mm | 387 mm 387 mm | 391 mm 391 mm | 397 mm 397 mm | 407 mm 407 mm |
| Stack | 556 mm 556 mm | 570 mm 570 mm | 586 mm 586 mm | 602 mm 602 mm | 616 mm 616 mm | 630 mm 630 mm |
| STR | 1.46 1.46 | 1.50 1.50 | 1.51 1.51 | 1.54 1.54 | 1.55 1.55 | 1.55 1.55 |
| Reach+ | ||||||
| Stack+ | ||||||
| Frame RAD | 674 mm 674 mm | 686 mm 686 mm | 702 mm 702 mm | 718 mm 718 mm | 733 mm 733 mm | 750 mm 750 mm |
| Frame RAAD | 34.4° 34.4° | 33.8° 33.8° | 33.4° 33.4° | 33° 33° | 32.8° 32.8° | 32.9° 32.9° |
| Front-Center | ||||||
| Head Angle | 70° 70° | 71° 71° | 71.5° 71.5° | 72° 72° | 72° 72° | 72° 72° |
| Seat Angle, effective | ||||||
| Seat Angle, real | 74° 74° | 73.5° 73.5° | 73.5° 73.5° | 73° 73° | 73° 73° | 73° 73° |
| Top Tube Length | ||||||
| Top Tube Length (horizontal) | 540 mm 540 mm | 550 mm 550 mm | 560 mm 560 mm | 575 mm 575 mm | 585 mm 585 mm | 600 mm 600 mm |
| Head Tube Length | 125 mm 125 mm | 135 mm 135 mm | 150 mm 150 mm | 165 mm 165 mm | 180 mm 180 mm | 195 mm 195 mm |
| Seat Tube Length | 430 mm 430 mm | 450 mm 450 mm | 470 mm 470 mm | 490 mm 490 mm | 510 mm 510 mm | 530 mm 530 mm |
| Standover Height | 724 mm 731 mm | 740 mm 747 mm | 757 mm 764 mm | 774 mm 780 mm | 791 mm 797 mm | 807 mm 814 mm |
| Chainstay Length | 425 mm 435 mm | 425 mm 435 mm | 425 mm 435 mm | 425 mm 435 mm | 425 mm 435 mm | 425 mm 435 mm |
| Wheelbase | 1,024 mm 1,034 mm | 1,020 mm 1,030 mm | 1,026 mm 1,036 mm | 1,031 mm 1,041 mm | 1,041 mm 1,051 mm | 1,056 mm 1,066 mm |
| FC2RC | 1.41 1.38 | 1.40 1.37 | 1.41 1.38 | 1.43 1.39 | 1.45 1.42 | 1.48 1.45 |
| Bottom Bracket Drop | 80 mm 81 mm | 80 mm 81 mm | 80 mm 81 mm | 80 mm 81 mm | 80 mm 81 mm | 80 mm 81 mm |
| Bottom Bracket Height | ||||||
| Fork installation height | ||||||
| Fork offset | 50 mm 50 mm | 50 mm 50 mm | 50 mm 50 mm | 50 mm 50 mm | 50 mm 50 mm | 50 mm 50 mm |
| Trail | ||||||
| Travel (rear) | ||||||
| Travel (front) |
