Compare these geometries with each other

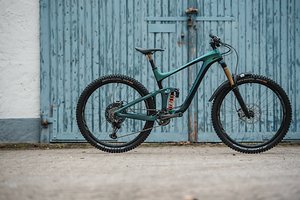

| Modell | Giant Reign Advanced Pro 0 (2021) | Giant Reign Advanced Pro 0 (2021) | Giant Reign Advanced Pro 0 (2021) | Giant Reign Advanced Pro 0 (2021) |
|---|---|---|---|---|
| Frame Size/Setup | S | M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ | 29″ | 29″ | 29″ |
| Reach | 423 mm | 451 mm | 488 mm | 511 mm |
| Stack | 622 mm | 622 mm | 631 mm | 640 mm |
| STR | 1,47 | 1,38 | 1,29 | 1,25 |
| Front-Center | ||||
| Head Angle | 64.6° | 64.6° | 64.6° | 64.6° |
| Seat Angle, effective | 76.4° | 76.4° | 76.4° | 76.4° |
| Seat Angle, real | ||||
| Top Tube Length | 571 mm | 601 mm | 640 mm | 666 mm |
| Top Tube Length (horizontal) | ||||
| Head Tube Length | 100 mm | 1.000 mm | 110 mm | 120 mm |
| Seat Tube Length | 431 mm | 431 mm | 464 mm | 496 mm |
| Standover Height | 757 mm | 759 mm | 781 mm | 804 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1.191 mm | 1.220 mm | 1.262 mm | 1.289 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm |
| Bottom Bracket Height | ||||
| Fork installation height | ||||
| Fork offset | 44 mm | 44 mm | 44 mm | 44 mm |
| Fork caster | ||||
| Travel (rear) | 146 mm | 146 mm | 146 mm | 146 mm |
| Travel (front) | 170 mm | 170 mm | 170 mm | 170 mm |
