Compare these geometries with each other

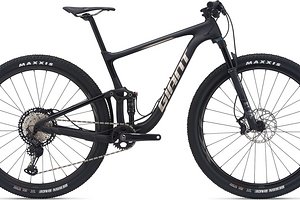

| Modell | Giant Anthem Advanced Pro 1 (2021) | Giant Anthem Advanced Pro 1 (2021) | Giant Anthem Advanced Pro 1 (2021) | Giant Anthem Advanced Pro 1 (2021) |
|---|---|---|---|---|
| Frame Size/Setup | S | M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ | 29″ | 29″ | 29″ |
| Reach | 417 mm | 437 mm | 454 mm | 471 mm |
| Stack | 585 mm | 585 mm | 594 mm | 604 mm |
| STR | 1,40 | 1,34 | 1,31 | 1,28 |
| Front-Center | ||||
| Head Angle | 69° | 69° | 69° | 69° |
| Seat Angle, effective | 73.5° | 73.5° | 73.5° | 73.5° |
| Seat Angle, real | ||||
| Top Tube Length | 590 mm | 610 mm | 630 mm | 650 mm |
| Top Tube Length (horizontal) | ||||
| Head Tube Length | 95 mm | 95 mm | 105 mm | 115 mm |
| Seat Tube Length | 390 mm | 440 mm | 490 mm | 535 mm |
| Standover Height | 747 mm | 780 mm | 817 mm | 843 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1.113 mm | 1.133 mm | 1.154 mm | 1.175 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm |
| Bottom Bracket Height | ||||
| Fork installation height | ||||
| Fork offset | 51 mm | 51 mm | 51 mm | 51 mm |
| Fork caster | ||||
| Travel (rear) | 90 mm | 90 mm | 90 mm | 90 mm |
| Travel (front) | 100 mm | 100 mm | 100 mm | 100 mm |
