Compare these geometries with each other

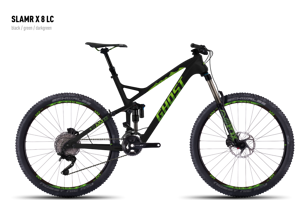

| Modell | Ghost SLAMR X 8 (2016) | Ghost SLAMR X 8 (2016) | Ghost SLAMR X 8 (2016) | Ghost SLAMR X 8 (2016) | Ghost SLAMR X 8 (2016) |
|---|---|---|---|---|---|
| Frame Size/Setup | XS | S | M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 27,5″ / 650B | 27,5″ / 650B | 27,5″ / 650B | 27,5″ / 650B | 27,5″ / 650B |
| Reach | 395 mm | 407 mm | 429 mm | 452 mm | 464 mm |
| Stack | 582 mm | 592 mm | 601 mm | 611 mm | 620 mm |
| STR | 1,47 | 1,45 | 1,40 | 1,35 | 1,34 |
| Front-Center | |||||
| Head Angle | 67° | 67° | 67° | 67° | 67° |
| Seat Angle, effective | 74° | 74° | 73.5° | 73.5° | 73.5° |
| Seat Angle, real | |||||
| Top Tube Length | |||||
| Top Tube Length (horizontal) | 560 mm | 580 mm | 605 mm | 630 mm | 645 mm |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| Seat Tube Length | 420 mm | 440 mm | 480 mm | 520 mm | 560 mm |
| Standover Height | 730 mm | 735 mm | 750 mm | 785 mm | 815 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1.118 mm | 1.134 mm | 1.160 mm | 1.186 mm | 1.202 mm |
| Bottom Bracket Drop | 6 mm | 6 mm | 6 mm | 6 mm | 6 mm |
| Bottom Bracket Height | |||||
| Fork installation height | |||||
| Fork offset | |||||
| Fork caster | |||||
| Travel (rear) | 150 mm | 150 mm | 150 mm | 150 mm | 150 mm |
| Travel (front) | 150 mm | 150 mm | 150 mm | 150 mm | 150 mm |
Please describe the error as accurately as possible. We will look at it and try to fix it as soon as possible!
Geometrie auch gültig für SL AMR X (LC) 10, 8, 7, 5
