Compare these geometries with each other

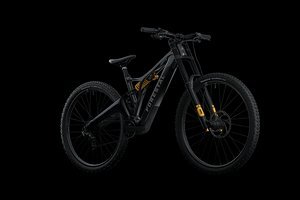

| Modell | Forestal Hydra Diode (2021) | Forestal Hydra Diode (2021) | Forestal Hydra Diode (2021) | Forestal Hydra Diode (2021) |
|---|---|---|---|---|
| Frame Size/Setup | S | M | L | XL |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | 29″ | 29″ | 29″ | 29″ |
| Reach | 415 mm | 446 mm | 476 mm | 496 mm |
| Stack | 621 mm | 621 mm | 634 mm | 648 mm |
| STR | 1,50 | 1,39 | 1,33 | 1,31 |
| Front-Center | ||||
| Head Angle | 62.7° | 62.7° | 62.7° | 62.7° |
| Seat Angle, effective | 75.7° | 75.7° | 75.7° | 75.7° |
| Seat Angle, real | ||||
| Top Tube Length | 572 mm | 604 mm | 639 mm | 661 mm |
| Top Tube Length (horizontal) | ||||
| Head Tube Length | 95 mm | 95 mm | 110 mm | 125 mm |
| Seat Tube Length | 420 mm | 430 mm | 465 mm | 500 mm |
| Standover Height | ||||
| Chainstay Length | 436 mm | 436 mm | 446 mm | 446 mm |
| Wheelbase | 1.216 mm | 1.245 mm | 1.292 mm | 1.318 mm |
| Bottom Bracket Drop | -16 mm | -16 mm | -16 mm | -16 mm |
| Bottom Bracket Height | 360 mm | 360 mm | 360 mm | 360 mm |
| Fork installation height | ||||
| Fork offset | 46 mm | 46 mm | 46 mm | 46 mm |
| Fork caster | ||||
| Travel (rear) | 170 mm | 170 mm | 170 mm | 170 mm |
| Travel (front) | 180 mm | 180 mm | 180 mm | 180 mm |
