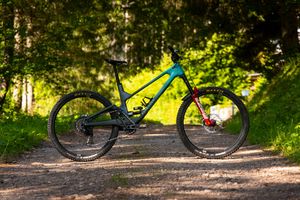

Forbidden Dreadnought V2 MX (2024) - Geometry
Compare these geometries with each other
Die Tabelle lässt sich verschieben.
| Modell | Forbidden Dreadnought V2 MX (2024) | Forbidden Dreadnought V2 MX (2024) | Forbidden Dreadnought V2 MX (2024) | Forbidden Dreadnought V2 MX (2024) |
|---|---|---|---|---|
| Frame Size/Setup | S1 | S2 | S3 | S4 |
| Typ | Mountainbike | Mountainbike | Mountainbike | Mountainbike |
| Wheel Size | Mullet 29/27,5 | Mullet 29/27,5 | Mullet 29/27,5 | Mullet 29/27,5 |
| Reach | 430 mm | 450 mm | 471 mm | 491 mm |
| Stack | 618 mm | 632 mm | 645 mm | 659 mm |
| STR | 1,44 | 1,40 | 1,37 | 1,34 |
| Reach+ | ||||
| Stack+ | ||||
| Front-Center | 775 mm | 802 mm | 829 mm | 855 mm |
| Head Angle | 63.1° | 63.1° | 63.1° | 63.1° |
| Seat Angle, effective | 77.1° | 77.1° | 77.1° | 77.1° |
| Seat Angle, real | 74.1° | 75.8° | 77.1° | 77.1° |
| Top Tube Length | ||||
| Top Tube Length (horizontal) | 572 mm | 595 mm | 618 mm | 641 mm |
| Head Tube Length | 90 mm | 105 mm | 120 mm | 135 mm |
| Seat Tube Length | 400 mm | 420 mm | 440 mm | 470 mm |
| Standover Height | 771 mm | 775 mm | 777 mm | 780 mm |
| Chainstay Length | 431 mm | 446 mm | 460 mm | 475 mm |
| Wheelbase | 1.207 mm | 1.248 mm | 1.289 mm | 1.330 mm |
| FC2RC | 1,80 | 1,80 | 1,80 | 1,80 |
| Bottom Bracket Drop | 19.6 mm | 19.6 mm | 19.6 mm | -19.6 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Fork installation height | 561 mm | 561 mm | 561 mm | 561 mm |
| Fork offset | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | ||||
| Travel (rear) | 160 mm | 160 mm | 160 mm | 160 mm |
| Travel (front) | 170 mm | 170 mm | 170 mm | 170 mm |
