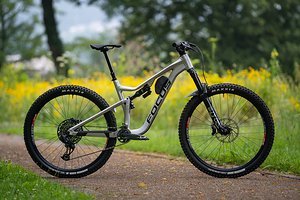

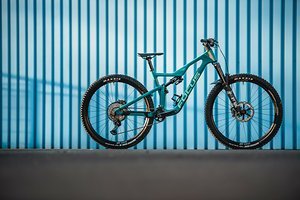

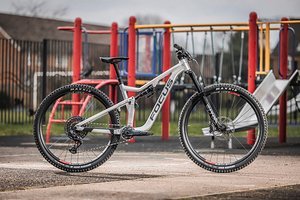

Focus Jam (2022) - Geometry

Compare these geometries with each other

The table can be moved.
Modell Focus Jam (2022) Focus Jam (2022) Focus Jam (2022) Focus Jam (2022)
Frame Size/Setup S M L XL
Typ Mountainbike Mountainbike Mountainbike Mountainbike
Wheel Size 29″ 29″ 29″ 29″ 29″ 29″ 29″ 29″
Reach 420 mm 425 mm 450 mm 455 mm 480 mm 485 mm 510 mm 515 mm
Stack 602 mm 602 mm 611 mm 611 mm 630 mm 630 mm 648 mm 648 mm
STR 1,43 1,42 1,36 1,34 1,31 1,30 1,27 1,26
Reach+
Stack+
Front-Center
Head Angle 65° 65.5° 65° 65.5° 65° 65.5° 65° 65.5°
Seat Angle, effective 76° 76.5° 76° 76.5° 76° 76.5° 76° 76.5°
Seat Angle, real
Top Tube Length 570 mm 570 mm 600 mm 600 mm 635 mm 635 mm 670 mm 670 mm
Top Tube Length (horizontal)
Head Tube Length 90 mm 90 mm 100 mm 100 mm 120 mm 120 mm 140 mm 140 mm
Seat Tube Length 390 mm 390 mm 420 mm 420 mm 450 mm 450 mm 470 mm 470 mm
Standover Height
Chainstay Length 435 mm 435 mm 435 mm 435 mm 435 mm 435 mm 435 mm 435 mm
Wheelbase 1.166 mm 1.166 mm 1.200 mm 1.200 mm 1.239 mm 1.239 mm 1.277 mm 1.277 mm
Bottom Bracket Drop 30 mm 24 mm 30 mm 24 mm 30 mm 24 mm 30 mm 24 mm
Bottom Bracket Height
Fork installation height 561 mm 561 mm 561 mm 561 mm 561 mm 561 mm 561 mm 561 mm
Fork offset 44 mm 44 mm 44 mm 44 mm 44 mm 44 mm 44 mm 44 mm
Fork caster
Travel (rear) 150 mm 150 mm 150 mm 150 mm 150 mm 150 mm 150 mm 150 mm
Travel (front)
